Startech USB4 Docking Station, USB-C 40Gbps, Dual

Images Manuals

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 1

Images for illustrative purposes

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 1

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (155UE-USB4-DOCK) - (ECE10426491)

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt

High-speed connectivity
Versatile video options
Comprehensive USB support
Enhanced network performance
Powerful charging capability

FREE Delivery on orders over €250

38 Available to Ship
Order within 17Hrs 13Mins for: Delivery (8 Jun or 9 Jun)

€187.81 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The StarTech.com USB4 Docking Station is designed to meet the needs of professionals and power users. With its USB-C 40 Gbps interface, it offers high data transfer speeds, making file transfers and backups efficient. The docking station supports dual video HDMI, capable of driving up to two 4K displays at 60 Hz with 4:4:4 chroma subsampling or at 120 Hz with 4:2:2, providing clear visuals for gaming, video editing, or multitasking across multiple screens.

Equipped with six USB ports, including both USB-A 3.2 Gen 1 and Gen 2, as well as USB-C 3.2 Gen 1 and Gen 2 with Power Delivery, it ensures compatibility with a wide range of devices and peripherals. The 2.5 Gigabit Ethernet port offers a significant upgrade to network speeds, enhancing online experiences whether for work or leisure. Additionally, the 100 W power delivery capability means you can charge laptops and other devices directly through the dock, reducing clutter and the need for multiple power adapters. With features like wake on LAN and a Kensington security slot for added security, the StarTech.com USB4 Docking Station expands your workstation's capabilities.

Features Summary

High-speed connectivity
With up to 40 Gbps data transfer, the USB4 Docking Station ensures rapid file transfers and efficient workflow, making it ideal for professionals and power users alike.
Versatile video options
Supports dual video HDMI, allowing for up to 2x 4K 60 Hz 4:4:4 (RGB) or 2x 4K 120 Hz 4:2:2 displays, providing stunning visual clarity for gaming, video editing, or multitasking on multiple monitors.
Comprehensive USB support
Equipped with six USB ports, including USB-A 3.2 Gen 1 and Gen 2, as well as USB-C 3.2 Gen 1 and Gen 2 with Power Delivery, this docking station accommodates a wide range of peripherals.
Enhanced network performance
Features 2.5 Gigabit Ethernet for high-speed network connections, supporting faster data transfer rates and improved online experiences.
Powerful charging capability
Offers 100 W power delivery to charge laptops and other devices efficiently, ensuring your workspace remains productive without the need for multiple chargers.

Specification Summary

Product Description

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE

Product Type

Docking station

Docking Interface

USB4 / Thunderbolt 4

Video Interfaces

2 x HDMI

Dimensions (WxDxH)

21 cm x 9.5 cm x 3.4 cm

Weight

138.6 g

Colour

Space grey

Networking

Gigabit Ethernet, 2.5 Gigabit Ethernet

Power

Power adapter 165 Watt AC 100-240 V 180 Watt Power Provided (DC 20 V)

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030902878

General

Product Type

Docking station

Width

21 cm

Depth

9.5 cm

Height

3.4 cm

Weight

138.6 g

Enclosure Colour

Space grey

Video

Max Resolution Details

3840 x 2160, 4K - 120 Hz (Dual Display) ¦ 7680 x 4320 - 60 Hz (Single Display)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Compliant Standards

USB 3.2 Gen 2, USB 3.2 Gen 1, USB4

Expansion / Connectivity

Interfaces

2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 2 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (20 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-T/1000Base-T/2500Base-T - RJ-45

Miscellaneous

Cables Included

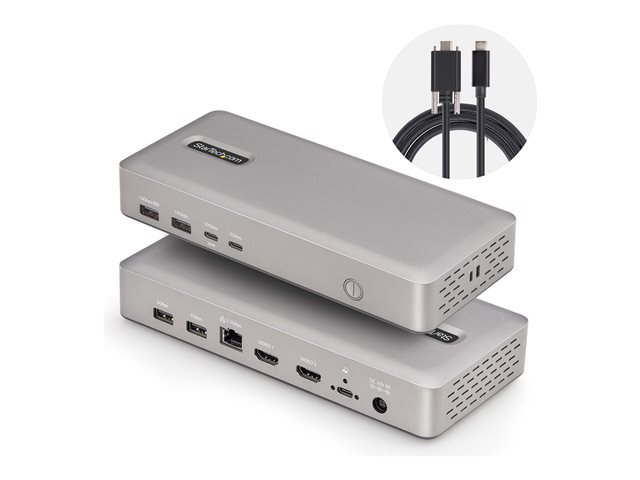

1 x USB4 cable - external - 1 m

Features

Wake on LAN, LED indicator, UASP transfer protocol, full duplex support, 100W power delivery, 4:4:4 chroma subsampling, up to 40Gbps data transfer

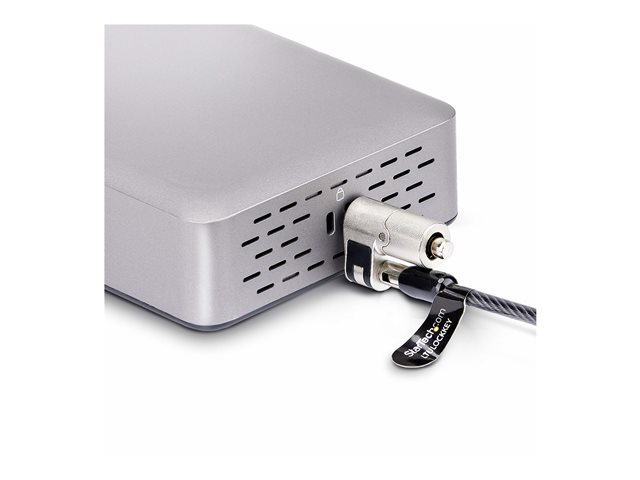

Security Slot Type

Kensington nano security slot / Kensington security slot

Compliant Standards

BC1.2, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 3.0

Power

Power Device

Power adapter

Power Consumption (Max)

165 Watt

Voltage Required

AC 100-240 V

Power Provided

180 Watt

Voltage Provided

DC 20 V

System Requirements

OS Required

Google Chrome OS, Microsoft Windows 7 / 8 / 10 / 11

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Depth

23 cm

Shipping Height

8.9 cm

Shipping Weight

1.3 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C
