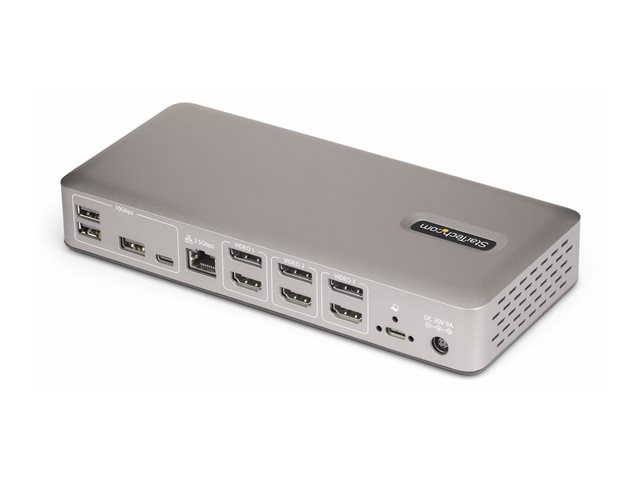

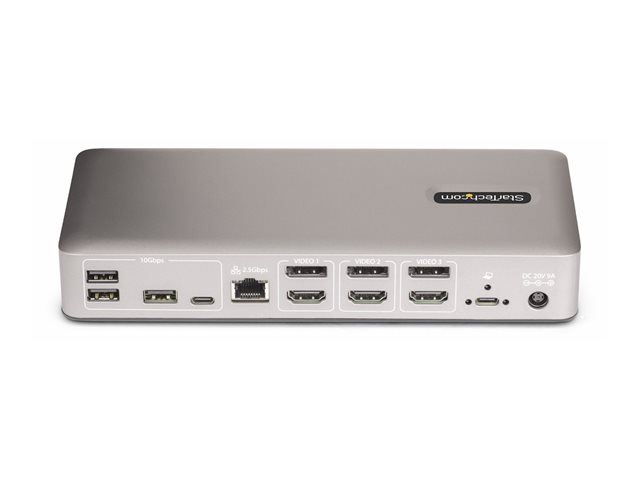

Startech Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless

Images for illustrative purposes

Startech Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (150UE-USB4DOCKTRIPLE) - (ECE11853531)

Startech Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless - Docking station - USB4 / Thunderbolt 4 - 3 x HDMI, 3 x DP - 1GbE, 2.5GbE - 180 Watt

Versatile connectivity options
High-resolution display support
Rapid data transfer speeds
Comprehensive power delivery
Advanced performance features

FREE Delivery on orders over €250

43 Available to Ship
Order within 7Hrs 35Mins for: Delivery (8 Jun or 9 Jun)

€246.32 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

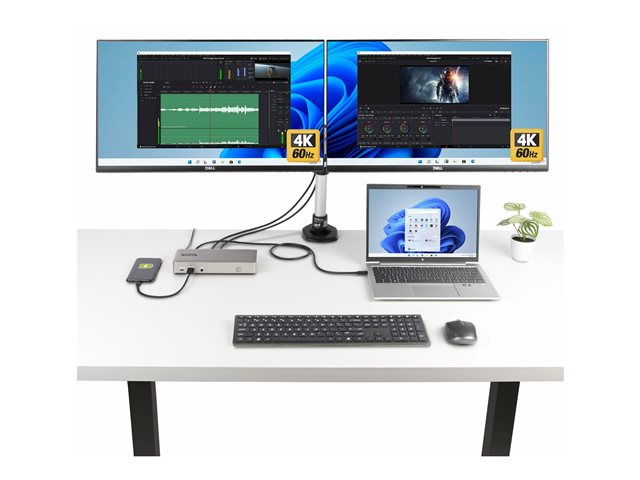

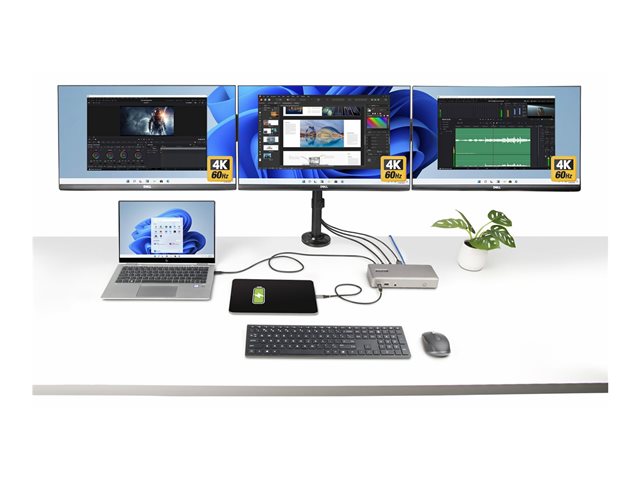

The StarTech.com Triple-Monitor USB4 Docking Station offers extensive connectivity options, making it suitable for multitaskers and professionals seeking efficient workspace solutions. With support for up to three displays featuring resolutions up to 4K at 60 Hz, this docking station allows integration of multiple monitors, enhancing productivity and workflow. Equipped with ports including HDMI, DisplayPort, Ethernet, and audio interfaces, it caters to various device connections while delivering high-quality audio and video output. This versatile docking station supports features like wake on LAN and UASP transfer protocol, ensuring performance for data transfers and network connections. Additionally, the USB4 technology enables data transfer speeds up to 40 Gbps, while providing up to 100 W power delivery to charge compatible devices. Compatible with both USB4 and Thunderbolt 4 devices, it provides versatility for both home office and professional setups.

Features Summary

Versatile connectivity options
Includes interfaces for HDMI, DisplayPort, audio, and Ethernet, allowing seamless connections to various devices and networks.
High-resolution display support
Enables multi-monitor setups with support for resolutions up to 3840 x 2160 at 60 Hz, delivering crisp visuals for productivity.
Rapid data transfer speeds
Utilizes USB4 technology for data transfer rates up to 40 Gbps, ensuring quick and efficient file transfers between devices.
Comprehensive power delivery
Equipped with 100 W power delivery to charge connected devices effectively, combining charging and data transfer in one solution.
Advanced performance features
Supports wake on LAN, UASP transfer protocol, and PXE allowing streamlined operation and efficient network management.

Specification Summary

Product Description

Startech Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless - docking station - USB4 / Thunderbolt 4 - 3 x HDMI, 3 x DP - 1GbE, 2.5GbE

Product Type

Docking station

Docking Interface

USB4 / Thunderbolt 4

Video Interfaces

3 x HDMI, 3 x DP

Dimensions (WxDxH)

9.5 cm x 21 cm x 3.4 cm

Weight

1.057 kg

Colour

Space grey

Networking

Gigabit Ethernet, 2.5 Gigabit Ethernet

Power

Power adapter AC 110-240 V 180 Watt Power Provided (DC 20 V)

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030902885

General

Product Type

Docking station

Width

9.5 cm

Depth

21 cm

Height

3.4 cm

Weight

1.057 kg

Enclosure Colour

Space grey

Video

Max Resolution Details

3840 x 2160, 4K - 144 Hz (DisplayPort only) ¦ 3810 x 2160 - 60 Hz (HDMI)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Compliant Standards

USB 3.2 Gen 2, USB 3.2 Gen 1, USB4

Expansion / Connectivity

Interfaces

3 x display / video - HDMI - 19 pin HDMI Type A ¦ 3 x display / video - DisplayPort - 20 pin DisplayPort ¦ 4 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 2 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-T/1000Base-T/2500Base-T - RJ-45

Miscellaneous

Cables Included

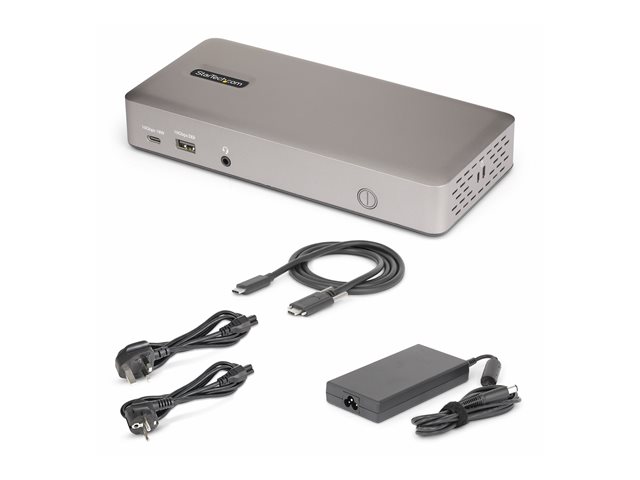

1 x USB4 cable - external - 1 m

Features

Wake on LAN, UASP transfer protocol, Preboot Execution Environment (PXE) support, full duplex support, 100W power delivery, up to 40Gbps data transfer

Security Slot Type

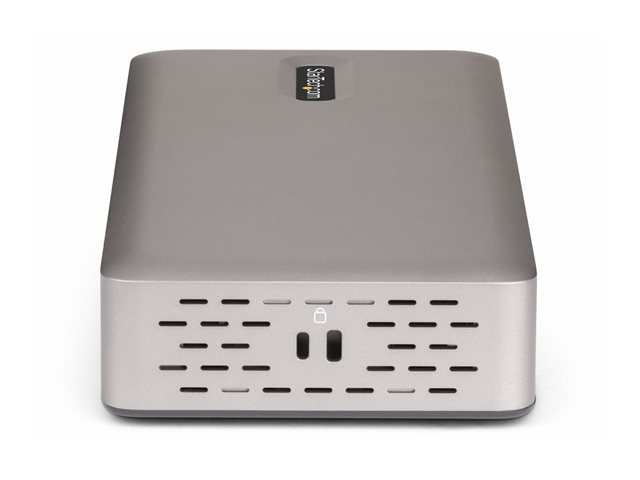

Kensington nano security slot / Kensington security slot

Compliant Standards

Plug and Play, BC1.2, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 3.0

Power

Power Device

Power adapter

Voltage Required

AC 110-240 V

Power Provided

180 Watt

Voltage Provided

DC 20 V

System Requirements

OS Required

Google Chrome OS, Microsoft Windows 10 / 11

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

14.5 cm

Shipping Depth

23.5 cm

Shipping Height

9.9 cm

Shipping Weight

1.4 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
