Startech Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Pow

Images for illustrative purposes

Startech Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Pow

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (132UE-TB4USB4DOCK) - (ECE9914331)

Startech Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Power Delivery, for Windows/MacBook - TB4 Host Cable (132UE-TB4USB4DOCK) - Docking station - Thunderbolt 4 -

Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz
Port Connectivity
98W USB Power Delivery Certified
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App

FREE Delivery on orders over €250

19 Available to Ship
Order within 8Hrs 19Mins for: FREE Delivery (8 Jun or 9 Jun)

€299.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

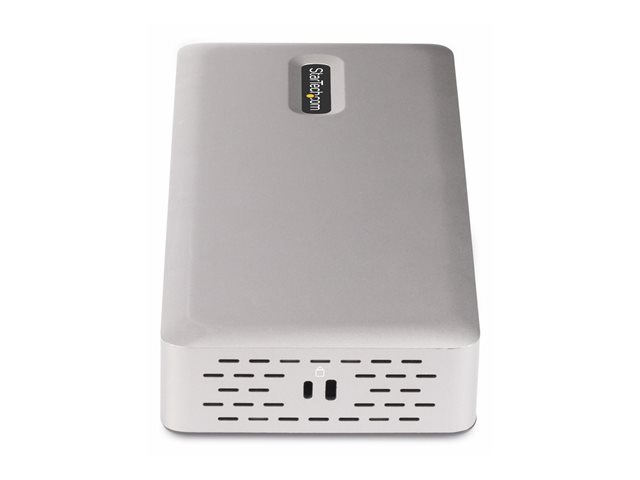

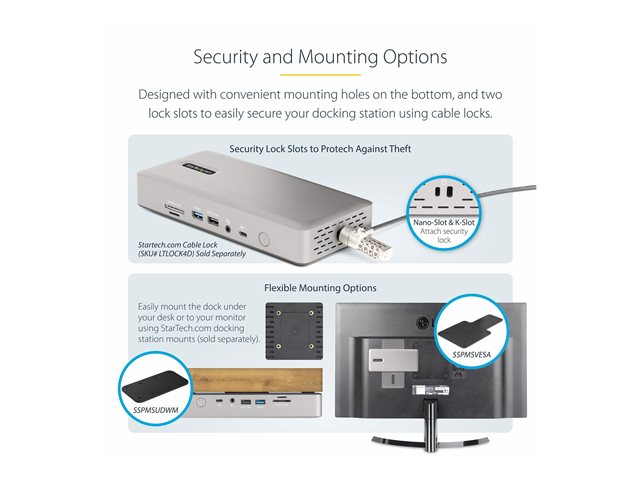

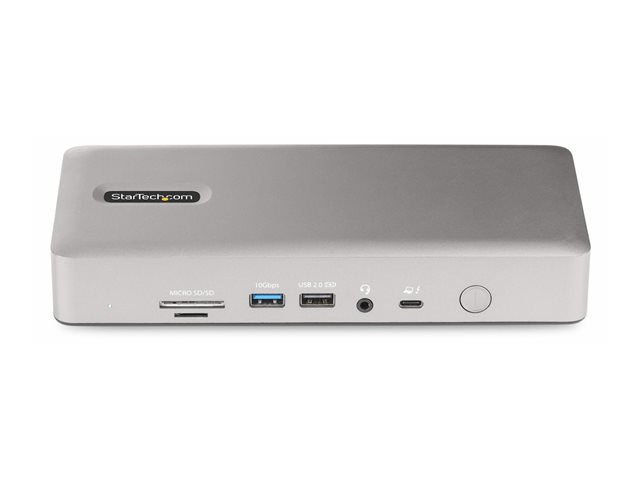

This Thunderbolt 4 dock uses a Thunderbolt 3/4, USB4, or USB-C port on a host computer to add connectivity while charging the laptop. The dock includes a 3.3ft/1m TB4 cable that connects to the front-facing USB-C host port, and features Kensington-style security slots. The dock features 2x HDMI and 2x DisplayPort outputs for connecting multiple monitors. It offers video flexibility, supporting single/dual/quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the dock can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions/refresh rates on computers without DSC or with earlier Intel revisions. The dock supports a single 8K 60Hz display on either HDMI ports. The Thunderbolt 4 dock includes a 180W power adapter and supports 98W USB PD. Enabling the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W for charging battery-powered USB devices. Thunderbolt 4 ensures the dock is fully compatible with Thunderbolt 4 laptops.

Features Summary

Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz

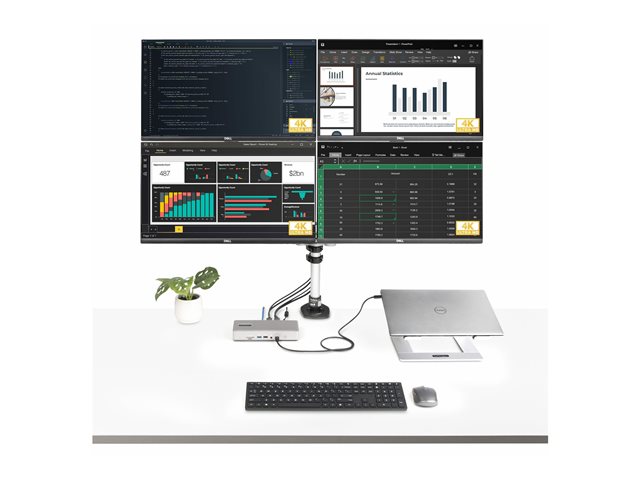

The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports. Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor a single display is supported.
Port Connectivity

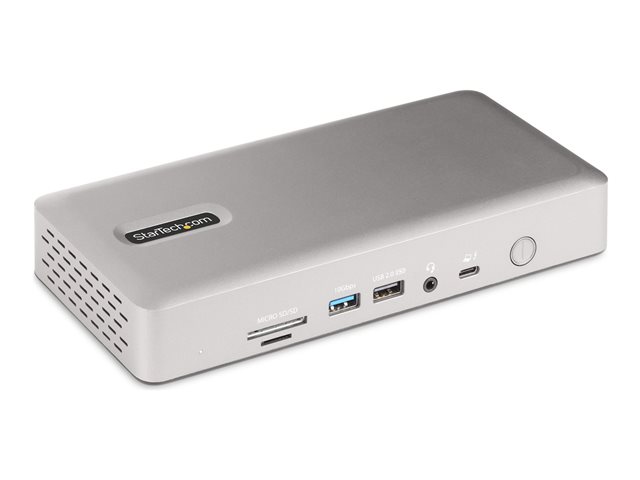

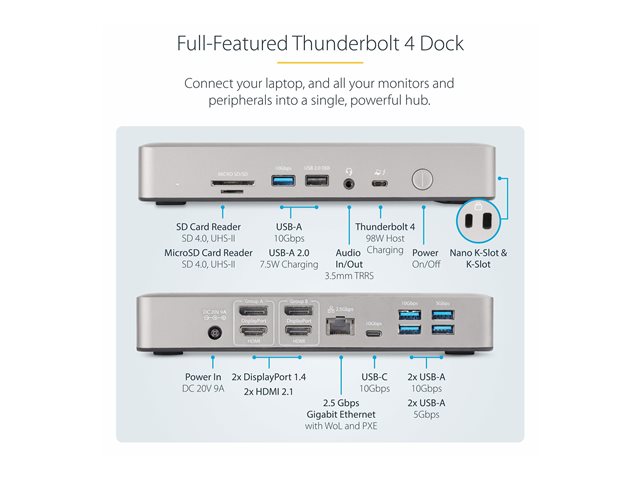

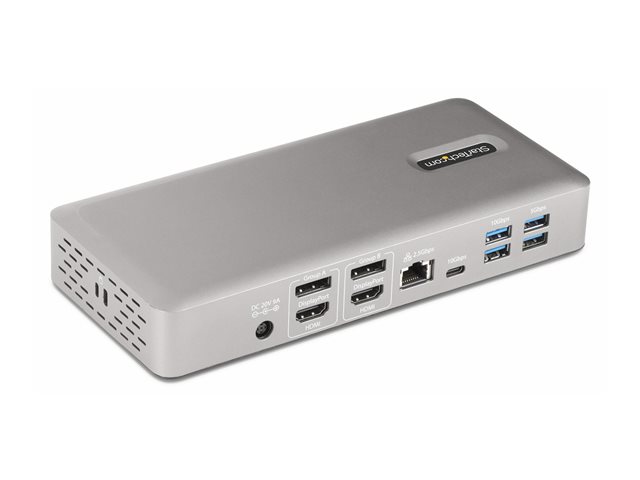

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications. The dock features: • 2x HDMI ports to connect displays • 2x DisplayPort ports to connect displays • 6x USB 3.2 ports (3x 10Gbps Type-A, 1x 10Gbps Type-C, 2x 5Gbps Type-A) to connect USB peripheral devices • 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices • 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN) • 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards • 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards • 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset
98W USB Power Delivery Certified
Includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes: •Text | Advanced Windows Layout Utility : To setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : To improve network security. •Text | USB Event Monitoring Utility : To track and log connected USB devices •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

Thunderbolt 4

Video Interfaces

2 x HDMI, 2 x DP

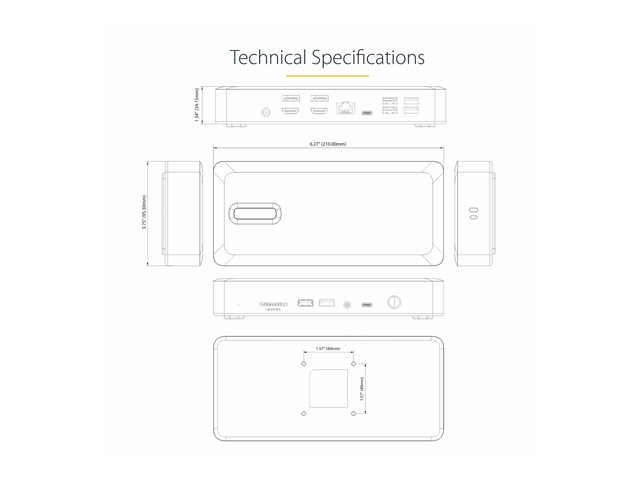

Dimensions (WxDxH)

21 cm x 9.6 cm x 3.4 cm

Weight

200 g

Colour

Space grey

Networking

Gigabit Ethernet

Power

Power adapter AC 110-240 V 180 Watt Power Provided (DC 20 V)

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030899680

General

Product Type

Docking station

Width

21 cm

Depth

9.6 cm

Height

3.4 cm

Weight

200 g

Enclosure Colour

Space grey

Video

Max Resolution Details

7680 x 4320 - 60 Hz (Single Display) ¦ 3810 x 2160 - 60 Hz (Dual Display) ¦ 3810 x 2160 - 60 Hz (Triple Display) ¦ 3810 x 2160 - 60 Hz (Quad Display)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

USB 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SD / MMC Memory Card ¦ 1 (total) / 1 (free) x microSD

Interfaces

2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-A 2.0 - 4 pin USB Type A ¦ 2 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Miscellaneous

Input Device

SD card reader, microSD card reader, MMC card reader

Cables Included

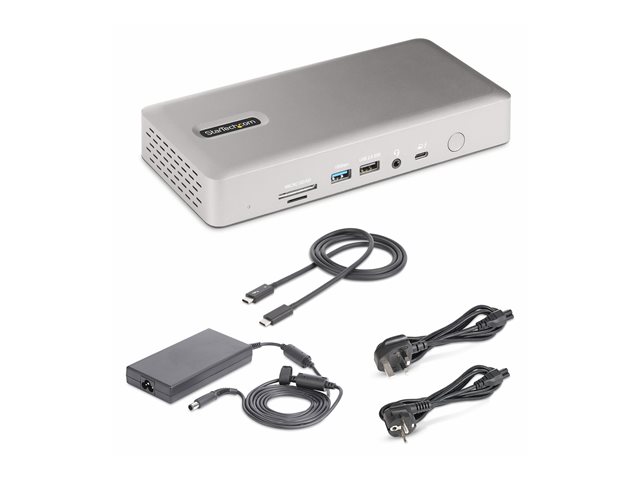

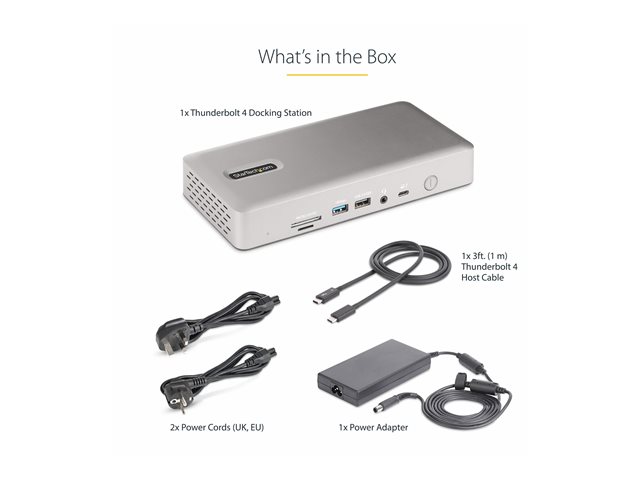

1 x Thunderbolt 4 cable - external - 1 m

Features

LED indicator, UASP transfer protocol, Preboot Execution Environment (PXE) support, full duplex support, up to 40Gbps data transfer, 98W power delivery

Compliant Standards

RoHS, DisplayPort 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0, Thunderbolt 4

Power

Power Device

Power adapter

Voltage Required

AC 110-240 V

Power Provided

180 Watt

Voltage Provided

DC 20 V

System Requirements

OS Required

Windows 10, Apple macOS Big Sur 11.0, Windows 11, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0, Apple macOS Sonoma 14.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

23.5 cm

Shipping Depth

23 cm

Shipping Height

9 cm

Shipping Weight

1.4 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
