Startech Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Win

Images for illustrative purposes

Startech Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Win

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (129UE-USBC-KVM-DOCK) - (ECE9043569)

Startech Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - Docking station - USB-C 3.2 Gen 2 - 2 x DP - 1GbE - TAA Compliant - United Ki

DisplayLink Certified
Simultaneously Charge Two Laptops
Full-Featured Docking Station

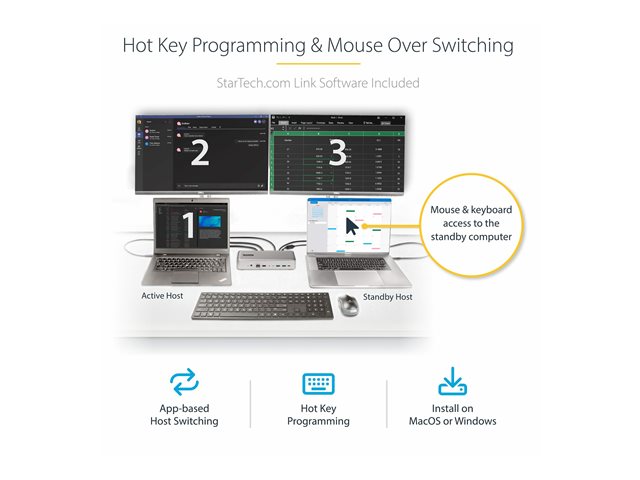

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

12 Available to Ship
Order within 8Hrs 27Mins for: FREE Delivery (8 Jun or 9 Jun)

€339.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

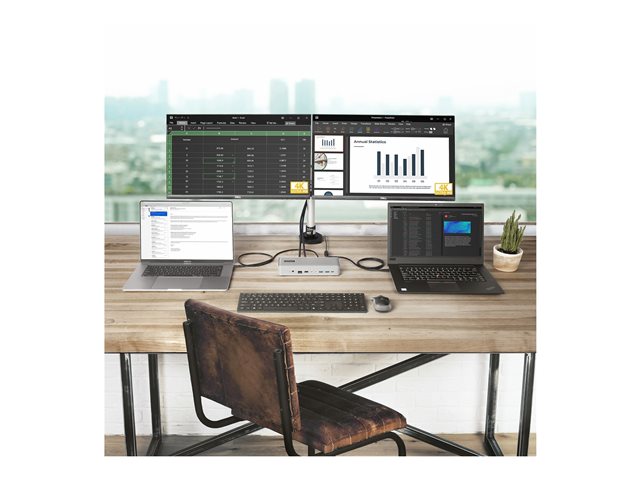

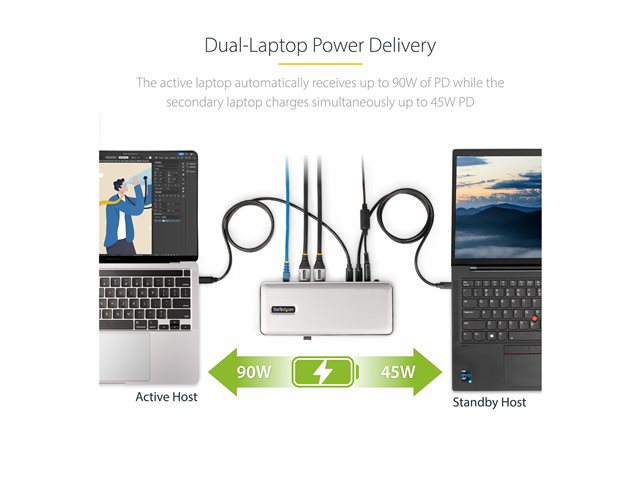

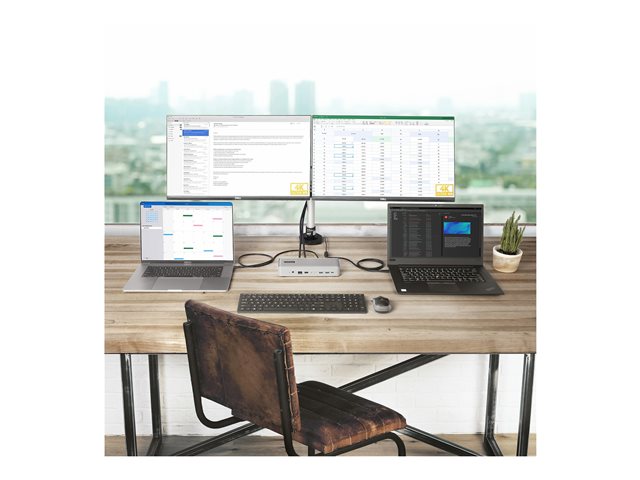

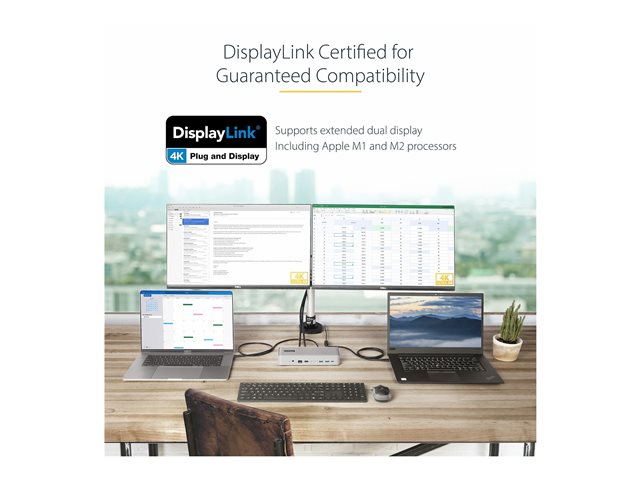

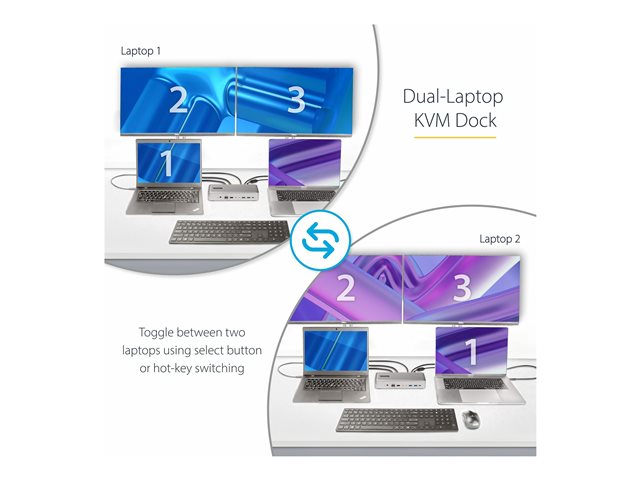

The USB-C KVM Docking Station facilitates a dual-host, dual monitor 4K 60Hz workstation with two DisplayPort ports. Connect two USB-C laptops and select the target host device, using the toggle button. It features a 5-Port USB Hub, a Gb Ethernet port, and USB Power Delivery to charge the hosts and peripherals. Additionally, 3.5mm ports enable speaker and mic audio. The dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS (supports mixed operating systems). DisplayLink technology supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The KVM docking station charges both host computers over USB-C, using Power Delivery 3.0. The dock supplies 90W of power to the active host and 45W of power to the host on standby.

Specification Summary

Product Description

Startech Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - docking station - USB-C 3.2 Gen 2 - 2 x DP - 1GbE - TAA Compliant

Product Type

Docking station

Docking Interface

USB-C 3.2 Gen 2

Video Interfaces

2 x DP

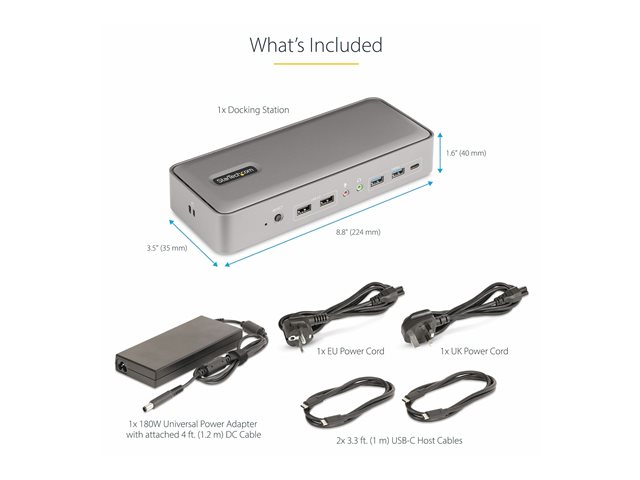

Dimensions (WxDxH)

9 cm x 22.4 cm x 4 cm

Weight

402 g

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter 180 Watt AC 100-240 V (DC 20 V)

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030898492

General

Product Type

Docking station

Width

9 cm

Depth

22.4 cm

Height

4 cm

Weight

402 g

Localisation

United Kingdom, Europe

Video

Max Resolution Details

4096 x 2160 - 60 Hz

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Interfaces

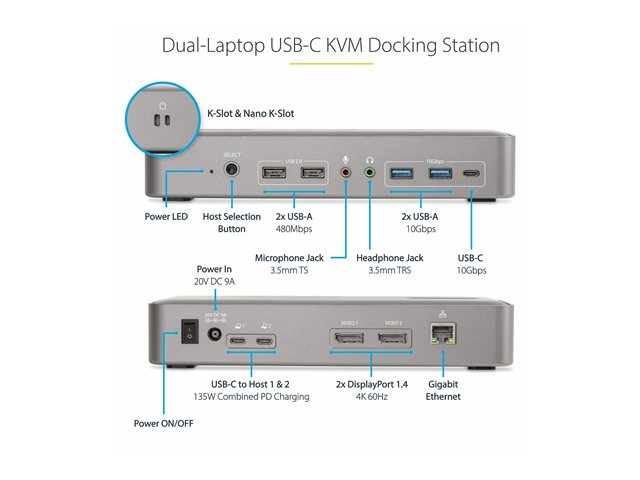

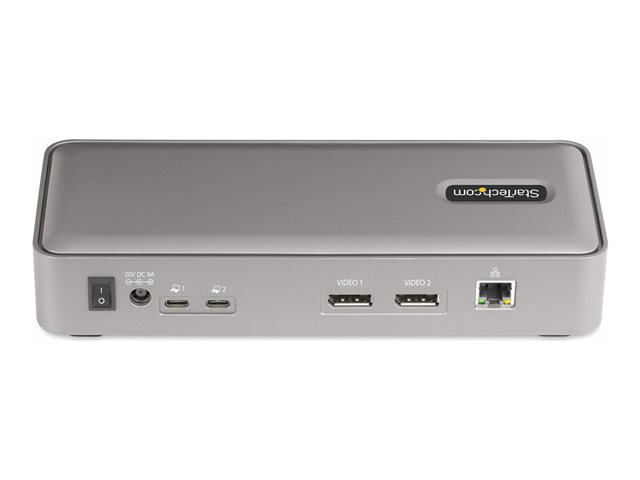

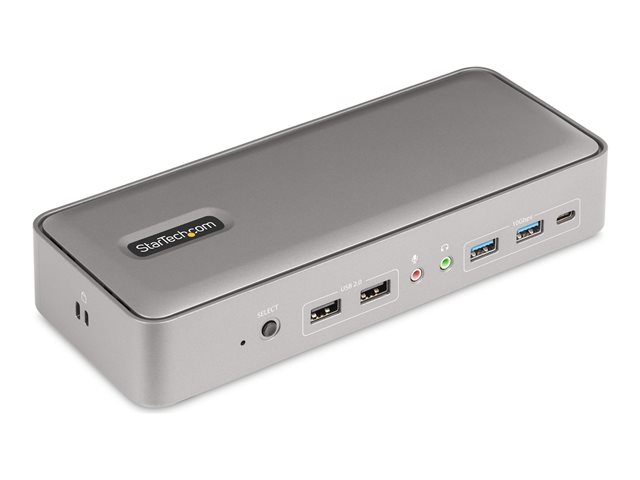

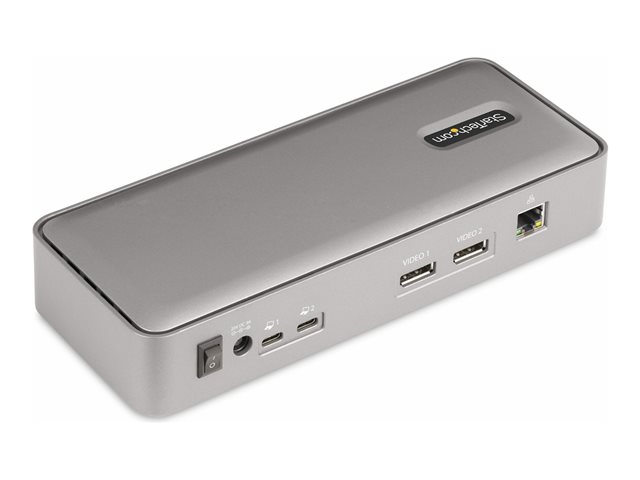

2 x USB 2.0 - 4 pin USB Type A ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x headphones - mini-phone 3.5 mm ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB-C 3.2 Gen 2 with Power Delivery 3.0 - 24 pin USB-C

Miscellaneous

Cables Included

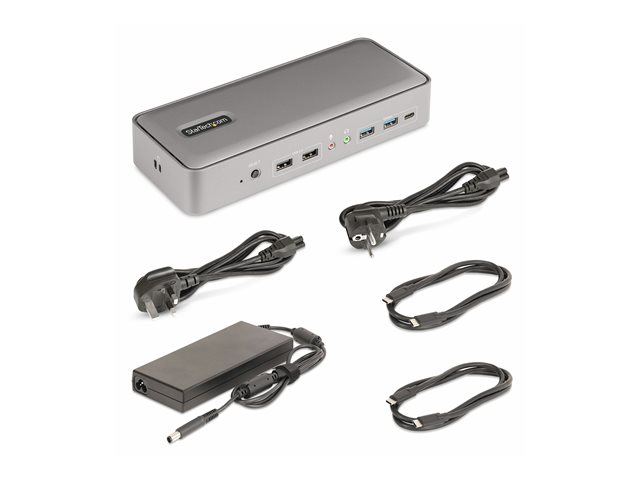

2 x USB-C cable - external - 1 m

Features

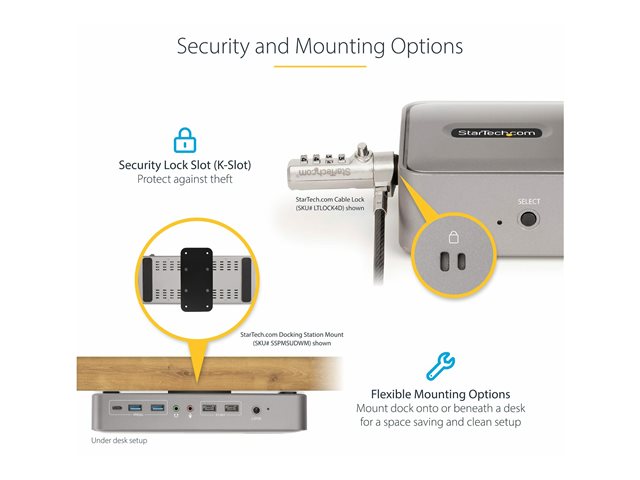

Security lock slot (cable lock sold separately), LED indicator, dual display support, full duplex support, MAC address pass-through, plastic housing, up to 10Gbps data transfer, host selection button, dual KVM host devices, 90W power delivery for active host device, 45W power delivery for standby host device

Security Slot Type

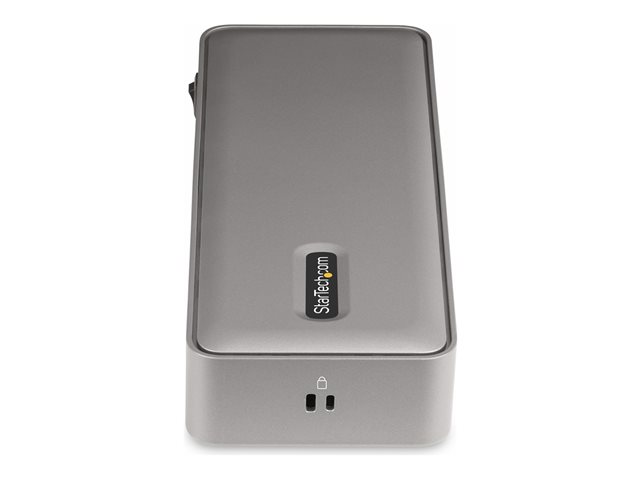

Kensington nano security slot / Kensington security slot

Compliant Standards

RoHS, WEEE, DisplayPort 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0, DisplayLink certified

TAA Compliant

Yes

Power

Power Device

Power adapter

Power Consumption (Max)

180 Watt

Voltage Required

AC 100-240 V

Voltage Provided

DC 20 V

System Requirements

OS Required

Google Chrome OS, Ubuntu 18.04, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Ubuntu 20.04, Apple macOS Monterey 12.0, Microsoft Windows 10 / 11, Apple macOS Ventura 13.0, Ubuntu 22.04, Apple macOS Sonoma 14.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

16 cm

Shipping Depth

28.5 cm

Shipping Height

9 cm

Shipping Weight

1.8 kg
