Startech USB-C Triple Monitor Docking Station - HDMI/DP Triple 4k USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal Multi Monitor Docking Station - Thunderbolt 3/4 Compatible (116U-USBC-DOCK) - Docking station - USB-C 3.2 Gen 2 - 2 x HDMI, 2 x DP - 1GbE

Enhance Productivity with Triple-4K Video
Full-Featured Docking Station
100W USB Power Delivery
Easy Deployment
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

127 Available to Ship
Order within 2Hrs 19Mins for: Delivery (8 Jun or 9 Jun)

€209.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

USB-C Triple 4K Monitor Docking Station features compatibility with USB-C, or Thunderbolt 3/4 laptops, supporting multiple 4K DisplayPort and/or HDMI monitors. Triple-4K dock uses a combination of its DisplayLink controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays. Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink ); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), enhancing productivity by expanding the display capabilities of your laptop. Connect the dock to your computer's USB-C port for a wide range of connectivity: 2x USB-A and 1x USB-C (5Gbps) ports, 1x USB-C (10Gbps) port that supports BC 1.2 with 7.5W (1.5A), 1x Gigabit Ethernet port with WoL, 1x 3.5mm 4-position TRRS Audio Jack, and 100W USB PD with included power adapter. Included 3.3ft (1m) USB-IF Certified USB-C host cable. Supports Windows, macOS, ChromeOS, and Ubuntu. Ensures seamless integration with Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max MacBooks and supports up to 3 extended displays on Macbook Pro/Air with Intel processor or Apple M1 / M2 chip. Side-facing K-Slot for added security in shared workspaces.

Features Summary

Enhance Productivity with Triple-4K Video

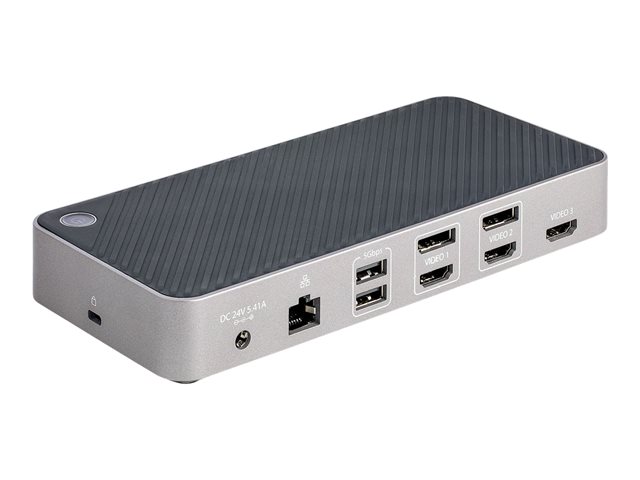

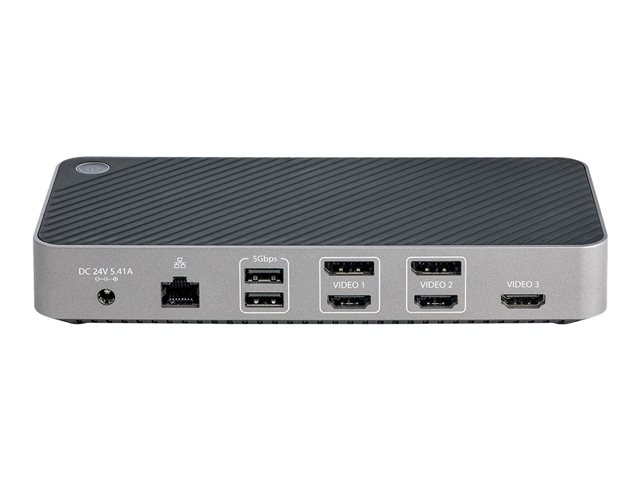

This triple-4K docking station uses a combination of its integrated DisplayLink graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays. Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink ); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.
Full-Featured Docking Station

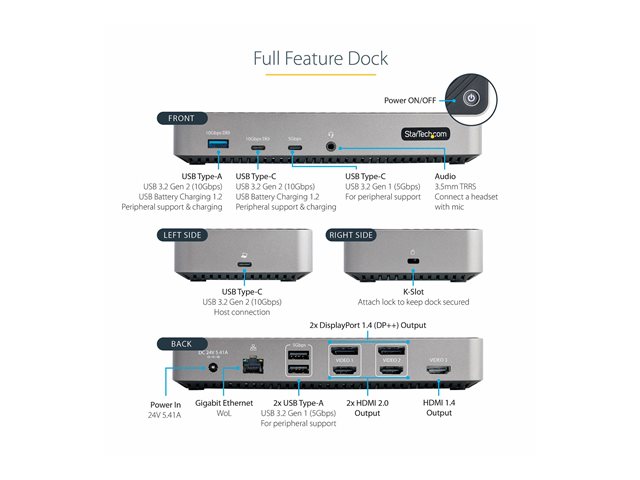

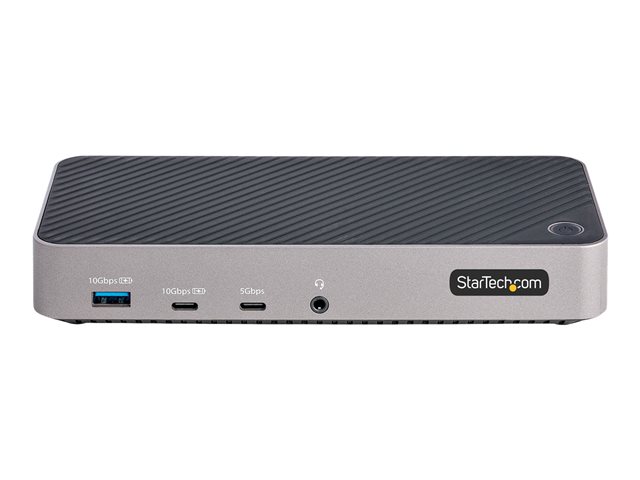

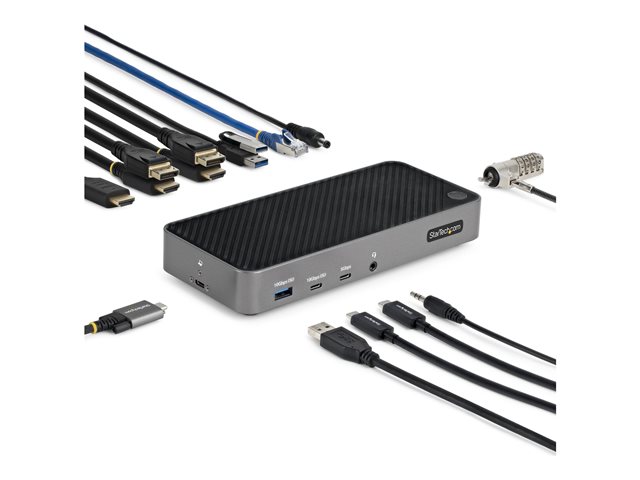

Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features: • 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices. • 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones. • 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection. • 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.
100W USB Power Delivery

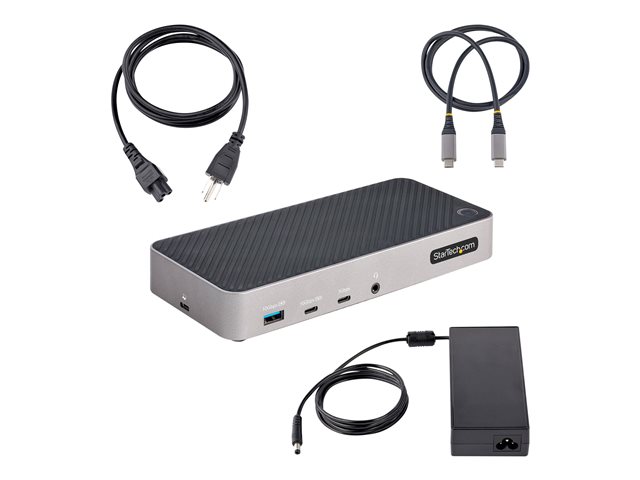

The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports. For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.
Easy Deployment

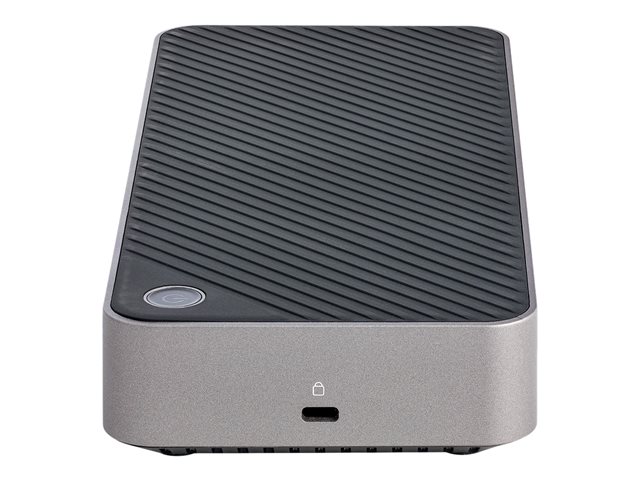

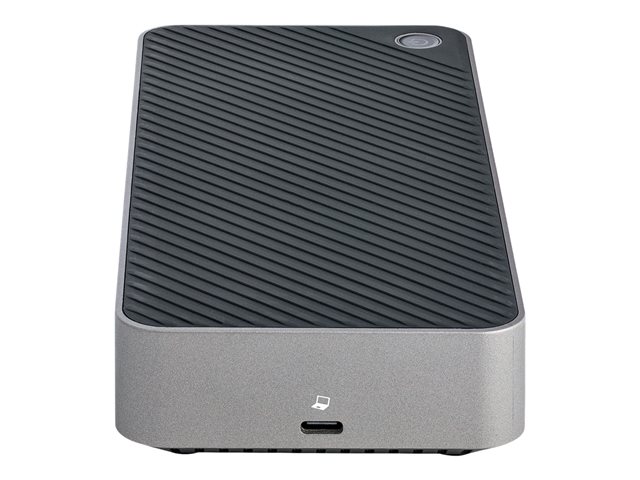

Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : Setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : Improve network security. •Text | USB Event Monitoring Utility : Track and log connected USB devices. •Text | Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

Specification Summary

Product Description

Startech USB-C Triple Monitor Docking Station - HDMI/DP Triple 4k USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal Multi Monitor Docking Station - Thunderbolt 3/4 Compatible (116U-USBC-DOCK) - docking station - USB-C 3.2 Gen 2 - 2 x HDMI, 2 x DP - 1GbE

Product Type

Docking station

Docking Interface

USB-C 3.2 Gen 2

Video Interfaces

2 x HDMI, 2 x DP

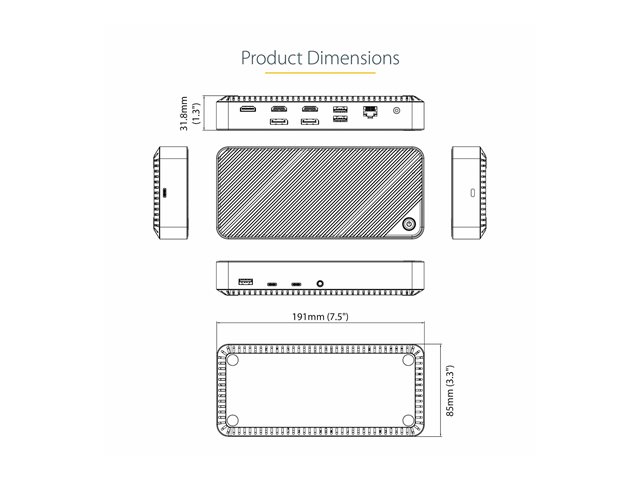

Dimensions (WxDxH)

19 cm x 8.5 cm x 3 cm

Weight

339 g

Colour

Space grey

Localisation

United Kingdom

Networking

Gigabit Ethernet

Power

Power adapter AC 100-240 V 100 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030900096

General

Product Type

Docking station

Width

19 cm

Depth

8.5 cm

Height

3 cm

Weight

339 g

Enclosure Colour

Space grey

Localisation

United Kingdom

Video

Max Resolution Details

4096 x 2160 - 60 Hz (Triple Display (2 x HDMI / DisplayPort))

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3ab, USB 3.2 Gen 2, USB 3.2 Gen 1

Expansion / Connectivity

Interfaces

3 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - 20 pin DisplayPort ¦ 1 x USB 3.2 Gen 2 with Fast Charging - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 with Fast Charging - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C

Miscellaneous

Cables Included

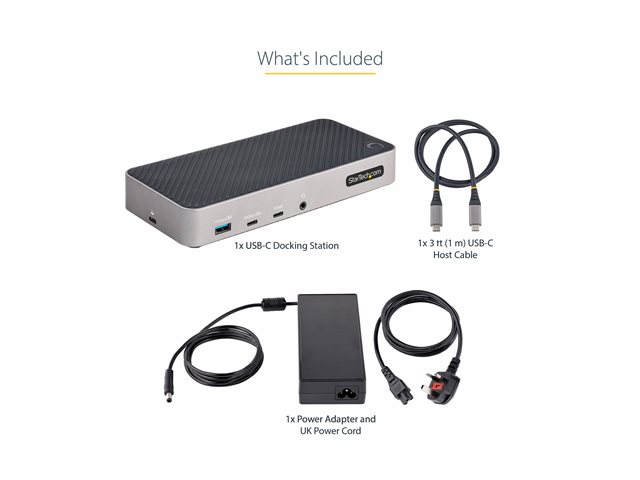

1 x USB-C cable - detachable - 1 m

Features

Security lock slot (cable lock sold separately), wake on LAN, overcurrent protection, DisplayLink DL-6950 chipset, DisplayPort Alt Mode, 100W power delivery, power key with LED

Security Slot Type

Kensington security slot

Compliant Standards

FCC, RoHS, WEEE, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 2.0, DisplayPort 1.4

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V

Power Provided

100 Watt

System Requirements

OS Required

Android, Google Chrome OS, Apple MacOS X 10.11 - 10.12, Apple macOS Big Sur 11.0, Apple MacOS X 10.14 - 10.15, Apple macOS Monterey 12.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Linux 3.5.x - 5.15.x LTS versions only, Apple macOS Ventura 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

25 cm

Shipping Depth

20.5 cm

Shipping Height

5 cm

Shipping Weight

1.2 kg
