Startech SATA PCIe Card, 10 Port PCIe SATA Expansi

Images Manuals

Images for illustrative purposes

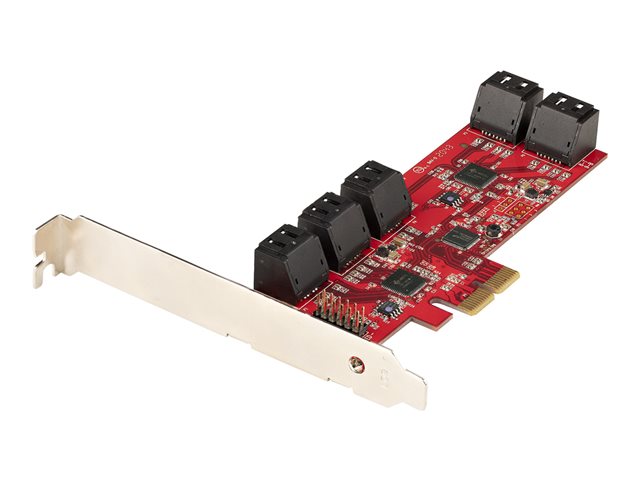

Startech SATA PCIe Card, 10 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1062 Non-Raid SATA Controlle

View all STARTECH.COM Storage Adapters | Controllers - Visit the STARTECH.COM Store (10P6G-PCIE-SATA-CARD) - (MMECD43727)

Startech SATA PCIe Card, 10 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1062 Non-Raid SATA Controller Card / Adapter - PCI Express to SATA Converter - storage controller - SATA 6Gb/s - PCIe 2.0 x2

ASM1062 to Deliver 10-Port SATA 6Gbps Performance
Wide Compatibility
Hassle-Free Installation

FREE Delivery on orders over €250

7 Available to Ship
Order within 14Hrs 32Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€145.39~~

€119.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

Specification Summary

Product Description

Device Type

Storage controller - plug-in card - low profile

Bus Type

PCIe 2.0 x2

Interface

SATA 6Gb/s

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

System Requirements

Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple MacOS X 10.10 - 12, Apple macOS 13.0

Dimensions (WxDxH)

1.6 cm x 5.4 cm x 13.9 cm

Weight

75 g

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030893763

General

Device Type

Storage controller - plug-in card - low profile

Host Bus

PCIe 2.0 x2

Storage Controller

Interface

SATA 6Gb/s

Data Transfer Rate

6 Gbit/s

Supported Devices

Hard drive, solid state drive

Processor

ASMedia ASM1062

Expansion / Connectivity

Interfaces

10 x SATA 6Gb/s - SATA (internal)

Miscellaneous

Included Accessories

Low-profile bracket

Features

Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support

Compliant Standards

Plug and Play, RoHS

Software / System Requirements

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Dimensions & Weight

Width

1.6 cm

Depth

5.4 cm

Height

13.9 cm

Weight

75 g

Dimensions & Weight (Shipping)

Shipping Width

14.2 cm

Shipping Depth

17 cm

Shipping Height

3 cm

Shipping Weight

120 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

85 °C

Humidity Range Operating

20 - 80%
