Startech mounting kit - articulating - for flat pa

Images Manuals

Images for illustrative purposes

Startech mounting kit

View all STARTECH.COM Monitor Mounts, Arms & Stands - Visit the STARTECH.COM Store (100AP1-TV-WALL-MOUNT) - (MMECQ96151)

Startech mounting kit - articulating - for flat panel - low profile - TAA Compliant

Heavy-Duty Articulating Television Mount
Versatile Mounting with a Premium Finish

FREE Delivery on orders over €250

5 Available to Ship
Order within 13Hrs 53Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€494.36~~

€463.81 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

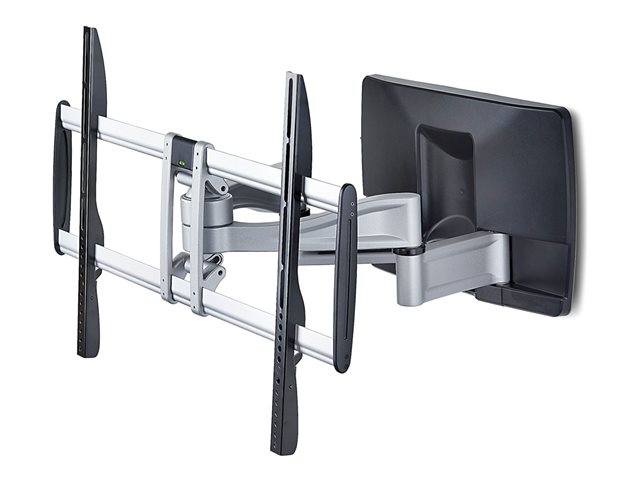

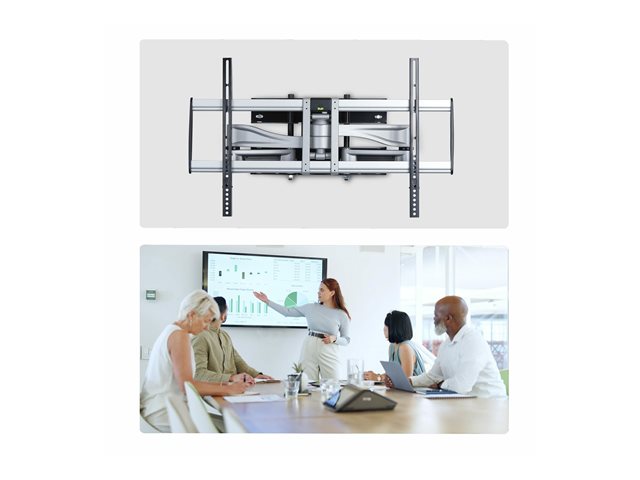

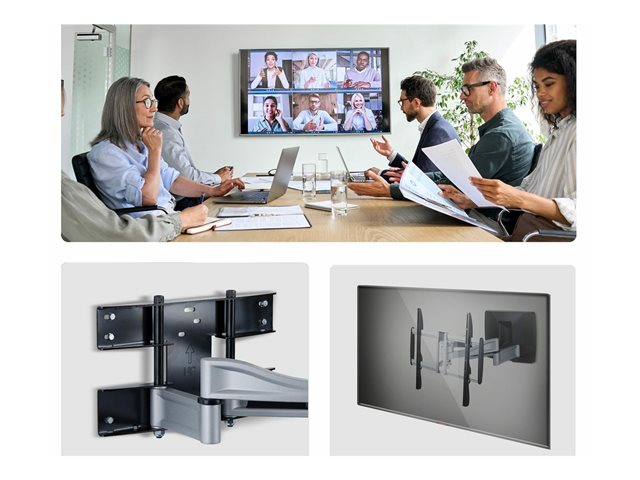

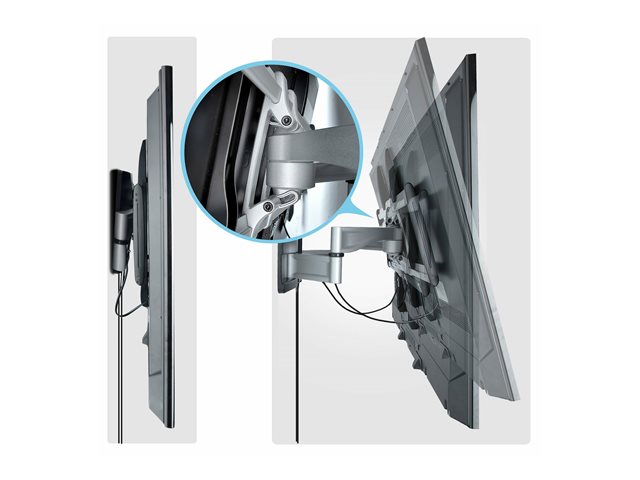

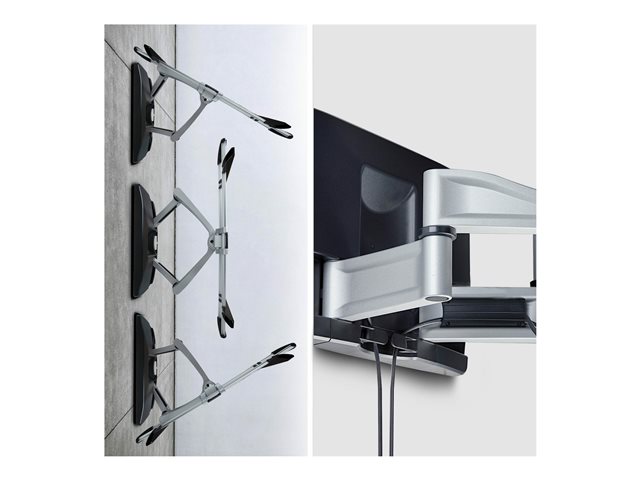

Create a TV mounting solution with this articulating wall mount that supports up to 100-inch and 187.4lb (85kg) televisions. Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter. The mount collapses to just 4.1in (10.5cm) from the wall and extends to 21.6 in (55 cm) for easy access behind the TV. Dual-stud mounting (16in spacing) and dual-arm design ensure safe mounting and smooth motion when positioning your display. For perfect screen positioning, you can tilt (+2°/-12°) and swivel (+/-60°) for post-install adjustments to achieve the best viewing angle. The flat screen bracket is TAA-compliant to meet procurement requirements. VESA-compatible wall mount supports patterns up to 800x500mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.

Specification Summary

Product Description

Startech mounting kit - articulating - for flat panel - low profile - TAA Compliant

Product Type

Mounting kit (articulating) - wall-mountable

Mounting Components

Wall mount, 2 vertical brackets

Dimensions (WxDxH)

52.5 cm x 87 cm x 55 cm

Tilt

-12° to 2°

Swivel

-60° to 60°

Adjustments

Tilt, swivel

Weight

14.23 kg

Recommended Use

Flat panel

Recommended Display Size

32"-100"

VESA Mounting Interface

200 x 200 mm, 800 x 500 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm, 600 x 300 mm, 500 x 300 mm, 200 x 300 mm, 200 x 400 mm

Max Load Weight

85 kg

Material

Aluminium, steel

TAA Compliant

Yes

Package Content

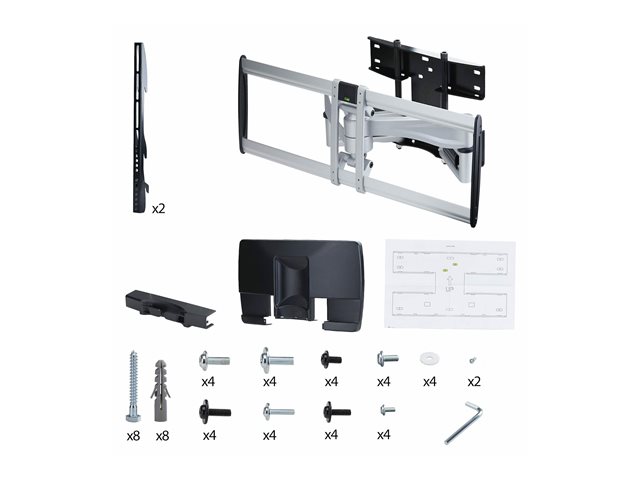

Hex key (6mm), mounting template, 4 x flat washers, 2 x vertical bracket screws, 8 x concrete anchors, 4 x M4 x 12 mm screws, 4 x M4 x 18 mm screws, 4 x M5 x 12 mm screws, 4 x M6 x 12 mm screws, 4 x M6 x 18 mm screws, 4 x M8x 12 mm screws, 4 x M8 x 18 mm screws, wall plate cover, 4 x M8 x 25 mm screws, 8 wall mounting screws

Manufacturer Warranty

5-year warranty

Specifications

EAN / GTIN:

0065030920056

General

Width

52.5 cm

Depth

87 cm

Height

55 cm

Weight

14.23 kg

Material

Aluminium, steel

Package Content

AV Furniture

Type

Mounting kit

Mounting Components

Wall mount, 2 vertical brackets

Design

Articulating

Recommended Use

Flat panel

Placing / Mounting

Wall-mountable

VESA Mounting Interface

200 x 200 mm, 800 x 500 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm, 600 x 300 mm, 500 x 300 mm, 200 x 300 mm, 200 x 400 mm

Cable Management

Integrated cable management

Recommended Display Size

32"-100"

Tilt

-12° to 2°

Swivel

-60° to 60°

Adjustments

Tilt, swivel

Max Load Weight

85 kg

TAA Compliant

Yes

Dimensions & Weight Details

Dimensions

Adjustable mounting arm (minimum) - depth: 10.5 cm ¦ Adjustable mounting arm (maximum) - depth: 55 cm

Shipping Dimensions (WxDxH) / Weight

94.5 cm x 38.6 cm x 18 cm / 16.5 kg

Manufacturer Warranty

Service & Support

Limited warranty - 5 years ¦ Technical support - assistance - lifetime
