Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

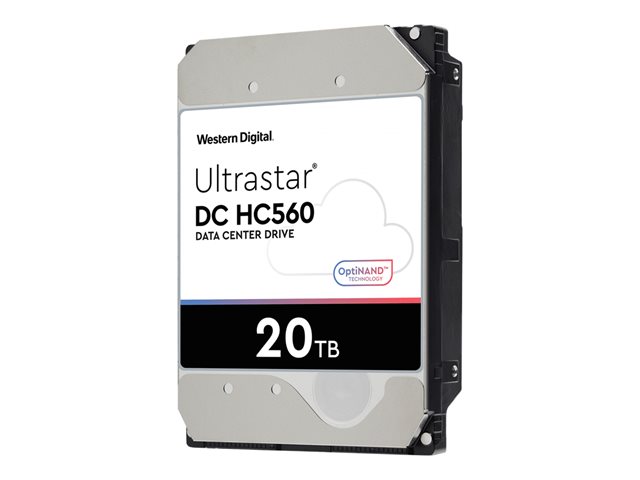

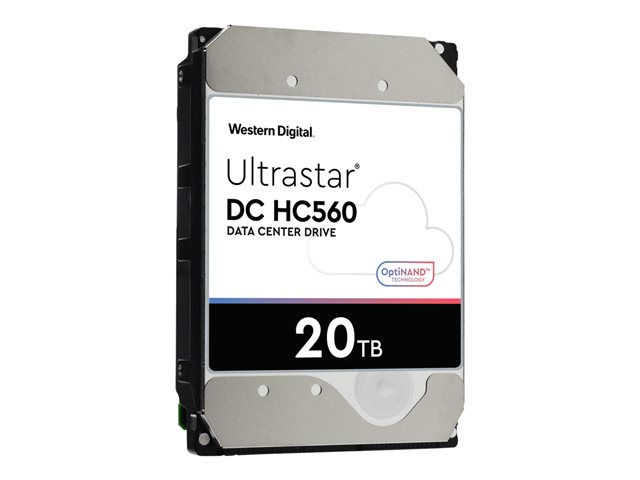

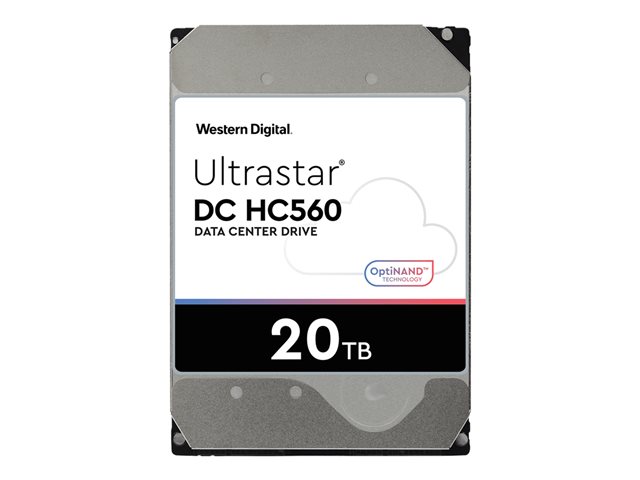

The Western Digital WD Ultrastar DC HC560 internal hard drive is engineered to meet the high-capacity and reliability needs of professional and personal storage environments. With a 20 TB capacity, it offers ample space for large-scale data storage. The drive integrates advanced technologies such as Energy-Assisted Magnetic Recording (EAMR) and HelioSeal, optimizing energy efficiency and increasing storage density. Additionally, the inclusion of OptiNAND technology and a Triple State Actuator (TSA) ensures superior data integrity and drive performance. Designed for continuous 24x7 operation and boasting a mean time between failures (MTBF) of 2,500,000 hours, this hard drive is the ideal solution for data centers, surveillance systems, and network attached storage devices, providing users with a reliable and efficient storage solution.


Specification Summary

Product Description
WD Ultrastar DC HC560 - hard drive - 20 TB - SAS 12Gb/s
Type
Hard drive - internal
Capacity
20 TB
Form Factor
3.5"
Interface
SAS 12Gb/s
Data Transfer Rate
1.2 GBps
Buffer Size
512 MB
Spindle Speed
7200 rpm
Features
HelioSeal, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), OptiNAND technology
Dimensions (WxDxH)
101.6 mm x 147 mm x 26.1 mm
Weight
690 g
Manufacturer Warranty
5-year warranty

Specifications

EAN / GTIN:
8717306635509
General
Device Type
Hard drive - internal
Capacity
20 TB
Form Factor
3.5"
Interface
SAS 12Gb/s
Buffer Size
512 MB
Features
HelioSeal, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), OptiNAND technology
Width
101.6 mm
Depth
147 mm
Height
26.1 mm
Weight
690 g
Performance
Drive Transfer Rate
1.2 GBps (external)
Internal Data Rate
269 MBps
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SAS 12 Gb/s
Compatible Bay
3.5"
Power
Power Consumption
9.3 watt (active) ¦ 6.1 watt (idle)
Software & System Requirements
OS Required
Microsoft Windows Server, Microsoft Windows, Linux
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
60 °C
Shock Tolerance (operating)
50 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)
250 g @ 2 ms half-sine wave
Vibration Tolerance (operating)
0.7 gRMS @ 5-500 Hz
Vibration Tolerance (non-operating)
1.04 gRMS @ 2-200 Hz
Sound Emission
32 dB
