AXIS M5074 - network surveillance camera - dome

Images Manuals

Images for illustrative purposes

AXIS M5074

View all AXIS IP | Network Cameras - Visit the AXIS Store (02345-001) - (MMECE50325)

M5074 - network surveillance camera - dome

Small size, small price
See it all - and see it clearly
Built-in analytics

FREE Delivery on orders over €250

6 Available to Ship
Order within 19Hrs 18Mins for: FREE Delivery (9 Jun or 10 Jun)

€729.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

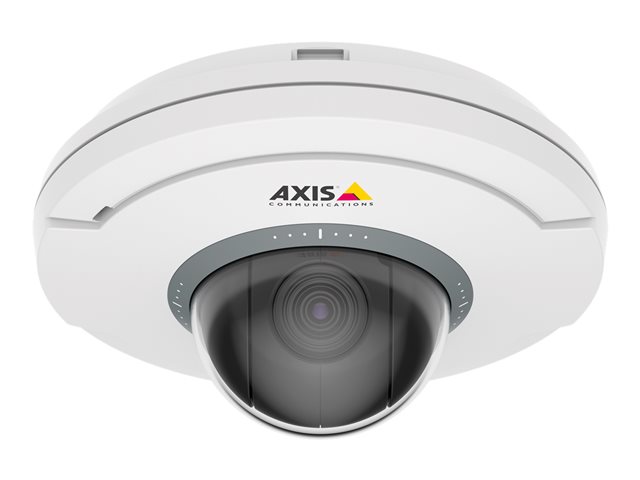

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture - and all the important details.

Features Summary

Small size, small price
This compact and discreet palm-sized PTZ camera blends discreetly into any environment. It comes at a price point that's nothing if not reasonable. Featuring a built-in microphone, it enables audio analytics such as scream and glass break detection. Thanks to zipstream with H.264/H.265 it significantly reduces storage and bandwidth without compromising image quality. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.
See it all - and see it clearly
AXIS M5074 delivers sharp, detailed video in HDTV 720p/1 MP resolution with great image usability. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Plus, autofocus ensures detailed, sharp images - every time. With wide dynamic range (WDR) technology, it preserves important forensic detail when there's both dark and light areas in the same scene. Furthermore, constant angle focusing ensures the field of view doesn't change even when the focus changes.
Built-in analytics
This Plug-and-Play functionality is a cost-effective way to gain insight for more efficient and effective security. It includes built-in analytics that transforms the camera into a business tool to help you make smart decisions about operations and resource allocation. For instance, it includes audio volume detection which uses the built-in microphone to trigger an event. Scream detection triggers an event when the microphone detects a scream in the camera's proximity. Furthermore, AXIS video motion detection triggers an event when movement is detected in a predefined area.

Specification Summary

Product Description

AXIS M5074 - network surveillance camera - dome

Device Type

Network surveillance camera - pan / tilt / zoom - dome

Audio

Yes: built-in microphone

Dimensions (WxDxH)

13 cm x 13 cm x 6.3 cm

Weight

380 g

Colour

Clear lower dome, white

Connectivity Technology

Wired

Camera

Colour - Day&Night

Optical Zoom

5 x

Max Resolution

1280 x 720

Frame Rate (max)

60 frames per second

Motion Detection

Yes

Video Modes

720p

Optical Sensor Type

PS CMOS - 1/4.85" - 1 MP

Minimum Illumination

0.9 lux - colour

Focal Length Control

Motorized zoom

Focal Length

2.2 mm - 11 mm

Focus Adjustment

Automatic

Lens Iris

F/1.4-2.5

Panning Range (degree)

-179 to +179

Tilting Range (degree)

Interfaces

Ethernet 10Base-T/100Base-TX

Voltage

PoE Plus Class 3

Features

Wide Dynamic Range (WDR), Zipstream technology, Audio Detection, active tampering alarm, signed firmware, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, 256 preset positions, progressive scanning, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Constant Bitrate (CBR), contrast control, brightness control, sharpness control, saturation control, white balance, exposure control, exposure zone, 180° image rotation, distortion correction function, text overlay, image overlay, polygon privacy mask, password protection, IP address filtering, multi-streaming, secure boot, e-mail alerts, notification picture to E-mail, notification picture to FTP, Pixel Counter Support, Video Motion Detection Technology, scream detection, Removed Object Detection, plastic housing, NAS-Ready

Manufacturer Warranty

5-year warranty

Environmental Parameters (operating)

0 °C - 45 °C; 10 - 90% RH (non-condensing) relative humidity

Specifications

EAN / GTIN:

7331021076174

General

Device Type

Network surveillance camera

Audio Support

Yes: built-in microphone

Audio Formats

LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS

Form Factor

Dome

Connectivity Technology

Wired

Width

13 cm

Depth

13 cm

Height

6.3 cm

Weight

380 g

Camera

Type

Colour - Day&Night - pan / tilt / zoom

Digital Video Format

H.265, H.264B, H.264H, H.264M, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, HEVC, MPEG-H Part 2

Max Digital Video Resolution

1280 x 720

Motion Detection

Yes

Video Modes

720p

Digital Zoom

Exposure Range

2 sec - 1/17000 sec

Minimum Illumination

0.9 lux - colour

Digital Video Capture Resolution

1280 x 720, 320 x 180

Frame Rate (max)

60 frames per second

RAM

1 GB

Flash Memory

512 MB

Features

Image Sensor

Type

1 MP PS CMOS 1/4.85"

Lens Construction

Type

Motorized zoom

Optical Zoom

5 x

Focal Length

2.2 mm - 11 mm

Lens Iris

F/1.4-2.5

Focus Adjustment

Automatic

Horizontal Field of View (degree)

14 - 71

Vertical Field of View (degree)

8 - 40

Panning

Range (degree)

-179 to +179

Speed (degree/sec)

Up to 100

Tilting

Range (degree)

Speed (degree/sec)

Up to 100

Interfaces

Network Interface

Ethernet 10Base-T/100Base-TX

Network Protocols

TLS, EAP, HTTPS, IPv4, IPv6, ICMP, HTTP, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DDNS, DNS, NTP, RTSP, RTP, RTCP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, LLDP, MQTT

Expansion / Connectivity

Ports

LAN/power - RJ-45

Supported Memory Cards

microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories

Mounting kit

Compliant Standards

IEEE 802.1x, BFR-free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM, AS/NZS CISPR 32 Class A, VCCI Class A, CSA C22.2 No. 62368-1, EN 62368-1, IEC 62368-1, UL 62368-1, IS13252, IEC/EN 60529 IP51, NIST SP500-267

Colour

Clear lower dome, white

Power

Power Requirements

PoE Plus Class 3

Power Device

4.2 Watt

Software / System Requirements

Software Included

Windows decoder 1-user licence, AXIS Video Motion Detection

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Relative Humidity (operating)

10 - 90% RH (non-condensing)
