EAN / GTIN:
7331021072978

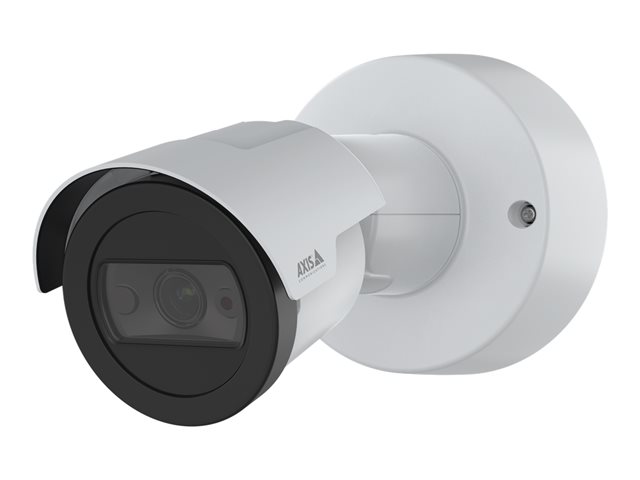

Device Type
Network surveillance camera
Connectivity Technology
Wired
Type
Colour - Day&Night - fixed - outdoor - weatherproof
Digital Video Format
H.264, H.265, MJPEG, MPEG-4, AVC, HEVC, MPEG-H Part 2
Max Digital Video Resolution
2688 x 1520
Exposure Range
1/5 sec - 1/38500 sec
Minimum Illumination
0.18 lux - colour - F2.1 - 50 IRE ¦ 0.04 lux - B&W - F2.1 - 50 IRE ¦ 0 lux - IR
Frame Rate (max)
30 frames per second
Features
Axis Edge Vault, Wide Dynamic Range (WDR), Lightfinder technology, Zipstream technology, remote zoom, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, progressive scanning, Adaptive Bitrate (ABR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 90° image rotation, brightness control, colour control, compression, contrast control, Corridor mode, exposure control, image mirror, image overlay, motion-adaptive exposure, Privacy Mask Function, sharpness control, text overlay, white balance, digital PTZ function, HTTPs encryption, IP address filtering, password protection, brute force delay protection, centralised certificate management, digest authentication, user access log, VAPIX support, aluminium housing, plastic housing, Power over Ethernet, infrared cut filter, Video Motion Detection Technology, active tampering alarm, Edge Storage
Type
4 MP PS RGB CMOS 1/2.7"
Lens Iris
F/2.1 fixed iris
Horizontal Field of View (degree)
130
Vertical Field of View (degree)
81
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
IPv4, IPv6, USGv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, DNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, RTCP, SOCKS, SSH, LLDP, MQTT, SNMP 1, SNMP 2c, SNMP 3, IGMP, IGMPv2, IGMPv3, DHCP
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Included Accessories
Torx L-key
Compliant Standards
IK08, IP66, IP67, NEMA Type 4X, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, NEMA TS-2, EMC, CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), AS/NZS CISPR 32 Class A, EN 60529, IEC 60068-2, IEC 60529, IEC 62471, IEC/EN 62262, IEC/EN 62368-1, IS13252, KN32 Class A, KN35, NIST SP500-267, RCM, VCCI Class A
Colour
White, NCS S 1002-B
Power Requirements
PoE Plus Class 3
Software / System Requirements
Software Included
Windows decoder 1-user licence
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 100% RH
