Mellanox ConnectX-4 Lx - network adapter - PCIe 3.

Images Manuals

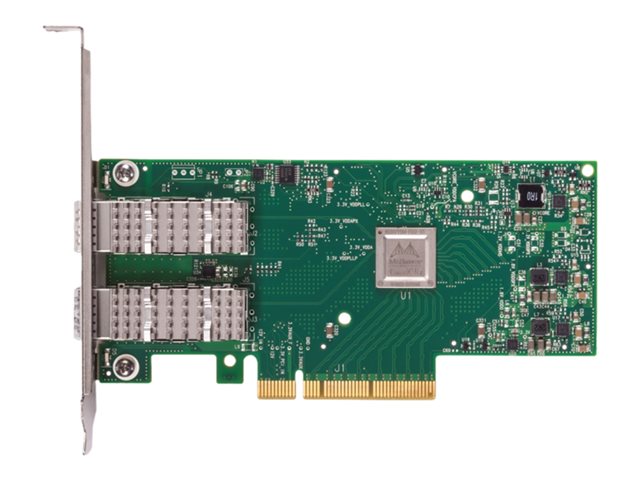

Images for illustrative purposes

Mellanox ConnectX-4 Lx

View all LENOVO PCI / M.2 Cards and Adapters - Visit the LENOVO Store (01GR250) - (ECE4107902)

Mellanox ConnectX-4 Lx - Network adapter - PCIe 3.0 x8 - 25 Gigabit SFP28 x 1 - for ThinkAgile HX2320 Appliance, VX3320 Appliance

Virtual Protocol Interconnect (VPI) adapter
Virtualization
Overlay networks

FREE Delivery on orders over €250

**Note: All Warranties/Dead On Arrival issues for this item are handled by the manufacturer

0 Available to Ship
Restock 04-Aug-2026 Estimated, Out of Stock Prices are Estimated.

€619.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

With the exponential increase in usage of data and the creation of new applications, the demand for the highest throughput, lowest latency, virtualization and sophisticated data acceleration engines continues to rise. ConnectX-4 Lx EN enables data centers to leverage the world's leading interconnect adapter for increasing their operational efficiency, improving servers' utilization, maximizing applications productivity, while reducing total cost of ownership (TCO).

ConnectX-4 Lx EN provides an unmatched combination of 1, 10, 25, 40, and 50GbE bandwidth, sub-microsecond latency and 75 million packets per second message rate. It includes native hardware support for RDMA over Converged Ethernet, Ethernet stateless offload engines, Overlay Networks, and GPUDirect Technology.

Specification Summary

Product Description

Mellanox ConnectX-4 Lx - network adapter - PCIe 3.0 x8 - 25 Gigabit SFP28 x 1

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

Ports

25 Gigabit SFP28 x 1

Data Link Protocol

25GbE

Data Transfer Rate

25 Gbps

Capacity

Number of physical functions: 16 ¦ Number of virtual functions: 256

Network / Transport Protocol

TCP/IP, UDP/IP, NFS, SMB, uDAPL

Compliant Standards

IEEE 1588v2, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3by

System Requirements

Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7 Update 2, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 12 SP1, VMware vSphere 5.5 (ESXi) Update 3, VMware vSphere 6.0 (ESXi) Update 2

Manufacturer Warranty

1-year warranty

Designed For

ThinkAgile HX2320 Appliance; HX3321 Certified Node; HX7820 Appliance; HX7821 Certified Node; ThinkAgile VX 1SE Certified Node; ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX1320 Appliance; VX3320 Appliance; VX3720 Appliance; VX5520 Appliance; VX7520 Appliance; VX7820 Appliance

Specifications

EAN / GTIN:

889488421626

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x8

Networking

Ports

25 Gigabit SFP28 x 1

Connectivity Technology

Wired

Data Link Protocol

25 Gigabit Ethernet

Data Transfer Rate

25 Gbps

Capacity

Number of physical functions: 16 ¦ Number of virtual functions: 256

Network / Transport Protocol

TCP/IP, UDP/IP, NFS, SMB, uDAPL

Features

MSI-X, Jumbo Frames support, RDMA support, XRC transport, DCT, UMR, ODP, SR-IOV, QoS, LSO, LRO, TCP/IP offloading, UDP/IP offloading, Ethernet remote boot, iSCSI remote boot, UEFI support, PXE support, MPLS support, VXLAN, NVGRE, SDN, Mellanox PeerDirect, Energy Efficient Ethernet, Link Aggregation, tagged VLAN, PFC, RSS

Compliant Standards

IEEE 1588v2, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3by

Expansion / Connectivity

Interfaces

1 x 25Gb Ethernet - SFP28

Miscellaneous

Compliant Standards

CB, cTUVus, EMC, FCC, VCCI, ICES, RCM, RoHS

Power

Power Consumption Operational

9.47 Watt

Software / System Requirements

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

0 - 90%

Compatibility Information

Designed For

Lenovo NeXtScale nx360 M5 5465 ¦ Lenovo System x3550 M5 5463, 8869 ¦ Lenovo System x3650 M5 5462, 8871 ¦ Lenovo System x3850 X6 6241 ¦ Lenovo System x3950 X6 6241 ¦ Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile HX3321 Certified Node 7Y89 ¦ Lenovo ThinkAgile HX3520-G Appliance 7X84 ¦ Lenovo ThinkAgile HX3721 Certified Node 7Y88 ¦ Lenovo ThinkAgile HX7520 Appliance 7X84 ¦ Lenovo ThinkAgile HX7820 Appliance 7Y95, 7Z08 ¦ Lenovo ThinkAgile HX7821 Certified Node 7Y96, 7Z09 ¦ Lenovo ThinkAgile VX 1SE Certified Node 7Z58 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX1320 Appliance 7Z58 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX3720 Appliance 7Y92 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SD530 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem ST550
