EAN / GTIN:
0606449162257

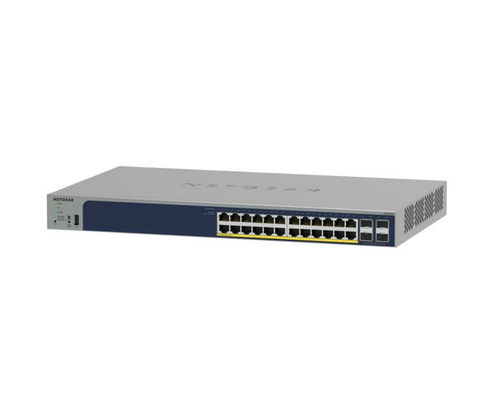

Device Type
Switch - 24 ports - L3 Lite - smart
Enclosure Type
Rack-mountable
Ports
16 x 10/100/1000 (PoE) + 8 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE)
PoE+
Performance
Bandwidth: 56 Gbps
Capacity
Virtual interfaces (VLANs): 256 ¦ ACL entries: 480 ¦ Multicast groups: 1024 ¦ IPv4 routes (static): 32 ¦ Packet buffer size: 8 MB
MAC Address Table Size
8K entries
Routing Protocol
IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote Management Protocol
RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, HTTPS, TFTP, HTTP
Encryption Algorithm
SSL, TLS 1.0
Authentication Method
RADIUS, TACACS+
Features
DHCP support, IGMP snooping, DHCP snooping, ACL support, DHCP client, Guest VLAN, broadcast storm protection, Multicast Storm Protection, auto video VLAN, Voice VLAN, Broadcast Storm Control, MLD snooping, block unknown multicast, TCP/UDP proxy, MAC lockdown, Port Security, PoE timer, ingress rate limiting, egress rate limiting, DiffServ support, WRR, SPQ, port mirroring
Compliant Standards
IEEE 802.1x, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Status Indicators
Port transmission speed, PoE, link/activity, fan, power
Interfaces
16 x 10/100/1000 Base-T RJ-45 PoE ¦ 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 100 / 1000Base-X SFP
Power Device
Internal power supply
Power Consumption Operational
264 Watt
Rack Mounting Kit
Included
Compliant Standards
IEEE 802.1p, CSA 22.2, FCC-15 (Class A), VCCI Class A, EN 55022/CISPR 22 Class A, C-Tick Class A, CCC, cUL No.60950, EN50082-1, EN55024
Service & Support
Limited warranty - lifetime ¦ Technical support - phone consulting - 90 days
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
95% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
