Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

60 Watts of Power for the Internet of things (IoT)!

The Intellinet Network Solutions Gigabit High-Power PoE Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. As many new powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit High-Power PoE Injector.

Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices

The Intellinet Network Solutions Gigabit High-Power PoE Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.

Reduced Wiring Costs

It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment

Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Wall-mount option

For full installation flexibility, you can mount the injector on the wall through four built-in fixing points on the back panel.


Specification Summary

Product Description

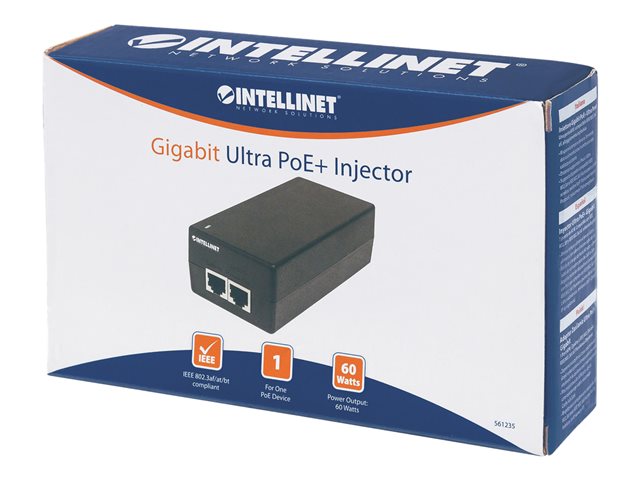

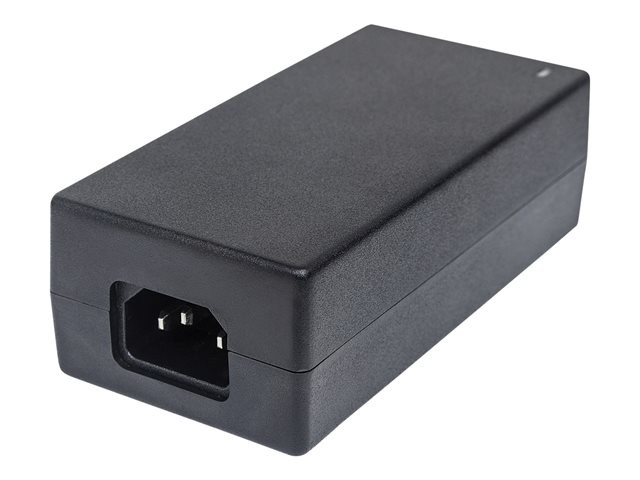

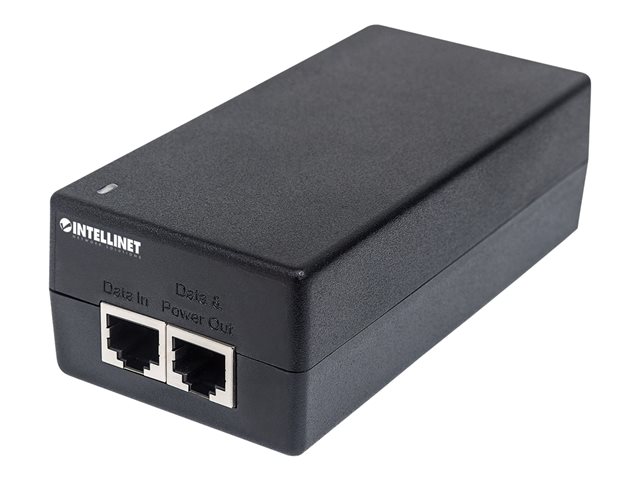

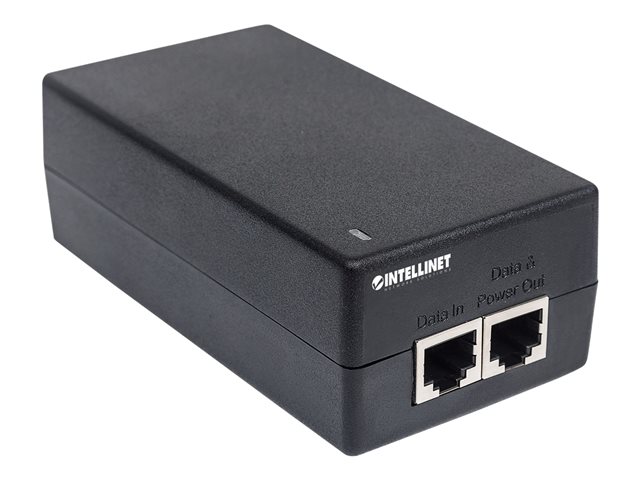

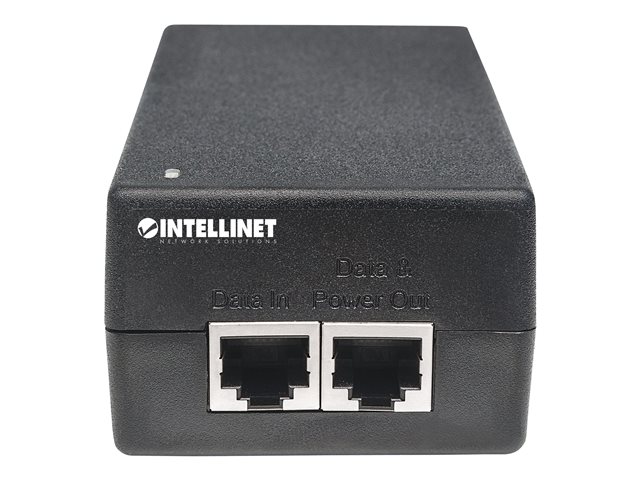

Intellinet Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing (UK Power Cord) - PoE injector - 60 Watt
Device Type
PoE injector - external
Power Over Ethernet (PoE)
UPOE
Weight
290 g
Localisation
United Kingdom
Input Voltage
AC 100-240 V
Output Voltage
48 V
Power Capacity
60 Watt
Input Connectors
1
Output connectors
1 x RJ-45
Dimensions (WxDxH)
6.1 cm x 12.3 cm x 4 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
0766623561235
General
Device Type
PoE injector - external
Power Over Ethernet (PoE)
UPOE
Localisation
United Kingdom
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Input Connectors
1
Power Consumption Operational
60 Watt
Power Output Connectors Details
1 x RJ-45
Output Voltage
48 V
Power Capacity
60 Watt
Expansion / Connectivity
Interfaces
1 x Gigabit LAN - RJ-45
Miscellaneous
Cables Included
Power cable - external
Features
LED indicator, over voltage protection, overload protection, fanless, short-circuit protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt, FCC Class B certified
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
6.1 cm
Depth
12.3 cm
Height
4 cm
Weight
290 g
