Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

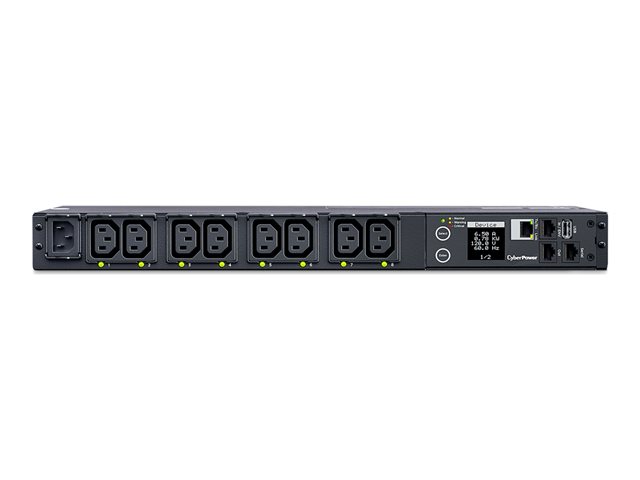

The CyberPower PDU41004, a 1U rackmount switched power distribution unit (PDU), provides 100-240V 15A output via 8 IEC-320 C13 receptacles from a single IEC-320 C14 input power plug.


Features Summary

  • Versatile orientation options
    The CyberPower PDU41004 supports both vertical and horizontal orientations, allowing for easy installation in various setups including server racks and cabinets.
  • Integrated remote management
    This unit supports protocols such as SNMP and Telnet, enabling remote monitoring and control through a user-friendly interface for efficient management.
  • Robust power monitoring
    Equipped with an LCD display, the PDU41004 provides users with real-time insights into voltage, current, and AC frequency, ensuring optimal performance and safety.
  • Compliance with industry standards
    The PDU41004 adheres to important standards such as FCC Class A and UL 60950, ensuring reliability and safety in professional environments.
  • Rack-mountable design
    Designed to occupy just 1 rack unit, this unit maximizes space while delivering high-performance power distribution capabilities.

Specification Summary

Product Description
CyberPower Switched Series PDU41004 - power distribution unit
Device Type
Power distribution unit - rack-mountable
Cord Length
3.05 m
Rack Size
1U
Weight
2.1 kg
Input Wiring
1-phase
Input Voltage
AC 100-240 V
Output Voltage
AC 100-240 V
Input Connectors
1 x power IEC 60320 C14
Output connectors
8 x power IEC 60320 C13
Networking
Ethernet, serial
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, SSH, SMTP, NTP
Colour
Black
Dimensions (WxDxH)
43.3 cm x 11.2 cm x 4.4 cm
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
4712856276701
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
1U
Cord Length
3.05 m
Colour
Black
Power Device
Input Voltage
AC 100-240 V
Input Wiring
1-phase
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
AC 100-240 V
Max Electric Current
12 A
Networking
Remote Management Interface
Ethernet, serial
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, SSH, SMTP, NTP
Expansion / Connectivity
Interfaces
1 x LAN - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45
Miscellaneous
Cables Included
Power cable 3.05 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
Vertical orientation, horizontal orientation, LCD display, voltage monitoring, current meter, digital power meter, AC frequency monitoring, firmware upgradable
Compliant Standards
FCC Class A certified, UL 60950, RoHS, EN 55032 Class A
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Width
43.3 cm
Depth
11.2 cm
Height
4.4 cm
Weight
2.1 kg
Dimensions & Weight (Shipping)
Shipping Width
50 cm
Shipping Depth
25 cm
Shipping Height
6.5 cm
Shipping Weight
3.9 kg
