Brother TD-4210D label printer B/W direct thermal...

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TD-4210D desktop label printer is ideal for printing crisp and easy-to-scan labels. Designed for continuous label printing, this cost-effective printer from the Brother TD-4D series is a great choice for short-term labeling applications.

Features Summary

Seamless integration
Many printer command languages are supported for ease of integration, including ZPL2, CPCL, ESC/P, EPL2 and DPL2 emulations, enabling integration into legacy systems.
High-resolution desktop printer
Brother's range of TD professional thermal printers allows you to print high-quality labels on demand.

Specification Summary

Product Description

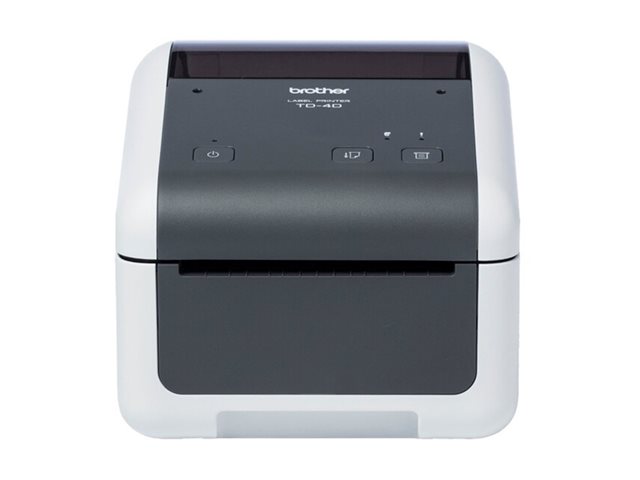

Brother TD-4210D - label printer - B/W - direct thermal

Printer Type

Label printer - direct thermal - B/W

Weight

2.08 kg

Max Media Size

Roll (11.8 cm)

Min Media Size (Custom)

19 mm x 6.4 mm

Max Media Size (Custom)

118 mm

Max Resolution (B&W)

203 dpi

Interface

USB 2.0, LAN, serial

RAM Installed (Max)

256 MB

Flash Memory Installed (Max)

64 MB

Language Simulation

EPSON ESC/P, ZPL II, EPL2, EPSON ESC/P Raster, Comtec Printer Control Language (CPCL), DPL

Barcodes

Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Postnet, PDF417, Data Matrix, Micro QR code, Intelligent Mail Barcode, ITF 2 of 5, MSI, GS1-128

Media Type

Receipt paper, continuous labels

Fonts

Brussels, Helsinki, San Diego, Letter Gothic Bold, Gothic, Brougham

Styles & Effects

Bold, normal, outline, shadow, italic, shadow light, surround, horizontal lines, invert

Features

Fixed gap/bar media sensor, date/time stamp, mirror print, label detection sensor

System Requirements

Linux, Microsoft Windows 7 / 8 / 10

Enclosure Colour

Grey, white

Manufacturer Warranty

3-year warranty

Dimensions (WxDxH)

10.8 cm x 15.5 cm x 22.4 cm

Specifications

EAN / GTIN:

4977766821575

General

Printer Type

Label printer - direct thermal - monochrome

Enclosure Colour

Grey, white

Printer

Connectivity Technology

Wired

Interface

USB 2.0, LAN, serial

Max Resolution (B&W)

203 dpi

Language Simulation

EPSON ESC/P, ZPL II, EPL2, EPSON ESC/P Raster, Comtec Printer Control Language (CPCL), DPL

Fonts

Brussels, Helsinki, San Diego, Letter Gothic Bold, Gothic, Brougham

Styles & Effects

Bold, normal, outline, shadow, italic, shadow light, surround, horizontal lines, invert

Features

Fixed gap/bar media sensor, date/time stamp, mirror print, label detection sensor

Barcodes

RAM

RAM Installed (Max)

256 MB

Flash Memory

64 MB

Media Handling

Media Type

Receipt paper, continuous labels

Max Media Size

Roll (11.8 cm)

Min Media Size (Custom)

19 mm x 6.4 mm

Max Media Size (Custom)

118 mm

Media Sizes

Roll (1.9 cm), Roll (11.8 cm)

Max Printing Width

104 mm

Max Printing Length

3000 mm

Roll Maximum Outer Diameter

127 mm

Roll Core Diameter

12.7 mm

Expansion / Connectivity

Connections

1 x RS-232C ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN

Miscellaneous

Cables Included

1 x USB cable

Power

Power Device

Power adapter - external

Software / System Requirements

Software Included

Brother P-touch Editor, Software Development Kit (SDK)

OS Required

Linux, Microsoft Windows 7 / 8 / 10

Manufacturer Warranty

Service & Support

Limited warranty - 3 years - carry-in

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 85% (non-condensing)

Dimensions & Weight

Width

10.8 cm

Depth

15.5 cm

Height

22.4 cm

Weight

2.08 kg
