Brother TD-2130N label printer B/W direct thermal...

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

With a range of specialised features, the TD-2130N is the perfect label printer for warehousing, logistics, manufacturing and retail – plus any other sector where you need to be able to print receipts or labels on the move.

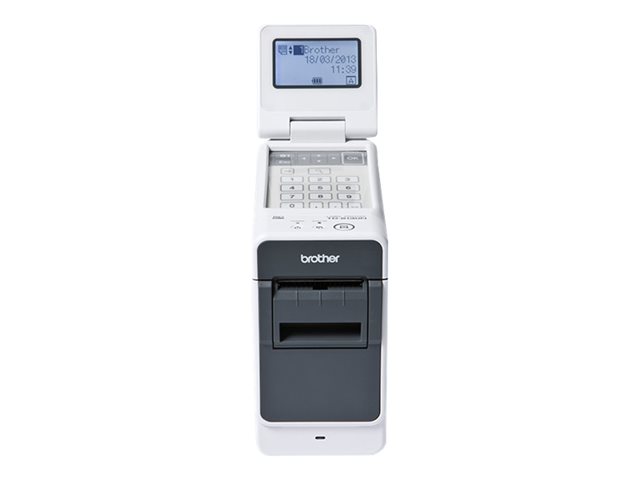

Pick up the optional wireless, battery and touchscreen, and this now truly portable and speedy machine prints at a high 300dpi, so you can rely on it to get the job done fast and done right.

Accommodating a generous 5" roll size and boasting impressive memory, the TD-2130N is especially flexible. And you can choose from an impressive range of extras including Bluetooth interface and touch panel display to design a personalised solution that suits your business to a tee.

Specification Summary

Product Description

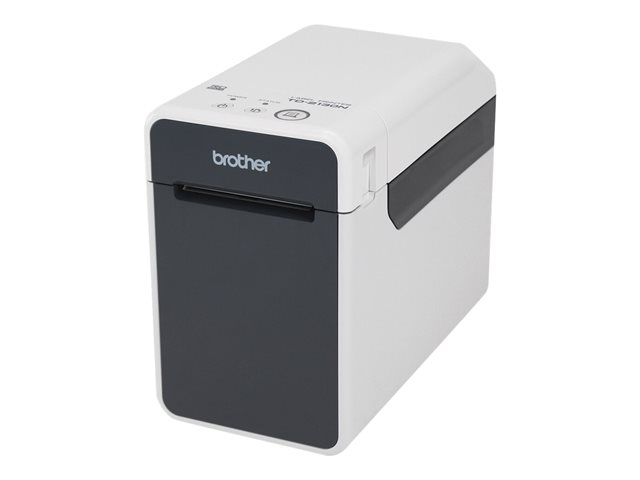

Brother TD-2130N - label printer - B/W - direct thermal

Printer Type

Label printer - direct thermal - B/W

Weight

1.34 kg

Max Media Size

Roll (6.3 cm)

Min Media Size (Custom)

19 mm

Max Media Size (Custom)

63 mm

Max Resolution (B&W)

300 x 300 dpi

Cutter

Yes

Interface

USB 2.0, LAN, serial, USB host

RAM Installed (Max)

6 MB

Language Simulation

EPSON ESC/P, ZPL II, EPSON ESC/P Raster

Media Type

Receipt paper, paper tag, die cut labels, wristband labels

Compatible Tapes

RD tape

Features

Black Mark sensor, gap sensor

Networking

Print server

System Requirements

Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012

Dimensions (WxDxH)

11 cm x 21.5 cm x 17.2 cm

Specifications

EAN / GTIN:

4977766720502

General

Printer Type

Label printer - direct thermal - monochrome

Printer

Connectivity Technology

Wired

Interface

USB 2.0, LAN, serial, USB host

Max Resolution (B&W)

300 x 300 dpi

Language Simulation

EPSON ESC/P, ZPL II, EPSON ESC/P Raster

Features

Black Mark sensor, gap sensor

Auto Cutter

Yes

RAM

RAM Installed (Max)

6 MB

Media Handling

Media Type

Receipt paper, paper tag, die cut labels, wristband labels

Compatible Tapes

RD tape

Max Media Size

Roll (6.3 cm)

Min Media Size (Custom)

19 mm

Max Media Size (Custom)

63 mm

Media Sizes

Roll (6.3 cm)

Max Printing Width

56 mm

Max Printing Length

1 m

Media Thickness Range

0.058 mm - 0.279 mm

Roll Maximum Outer Diameter

127 mm

Roll Core Diameter

25.4 mm

Networking

Print server

Expansion / Connectivity

Connections

1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A

Miscellaneous

Cables Included

1 x USB cable

Power

Frequency Required

50/60 Hz

Software / System Requirements

OS Required

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 80% (non-condensing)

Dimensions & Weight

Width

11 cm

Depth

21.5 cm

Height

17.2 cm

Weight

1.34 kg
