APC Back-UPS CS 500 UPS 300 Watt 500 VA...

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Features Summary

Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Specification Summary

Product Description

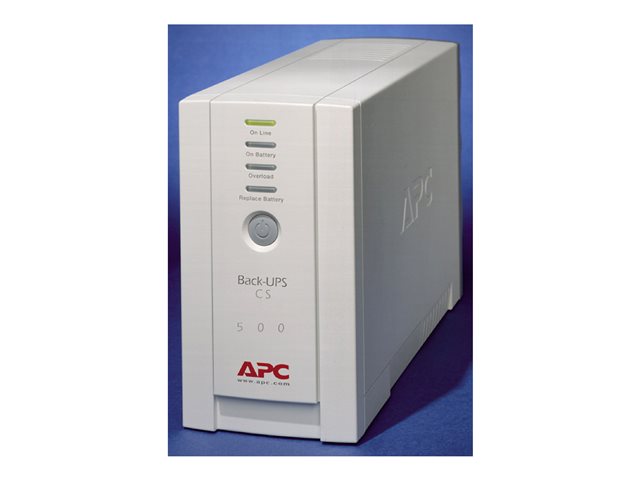

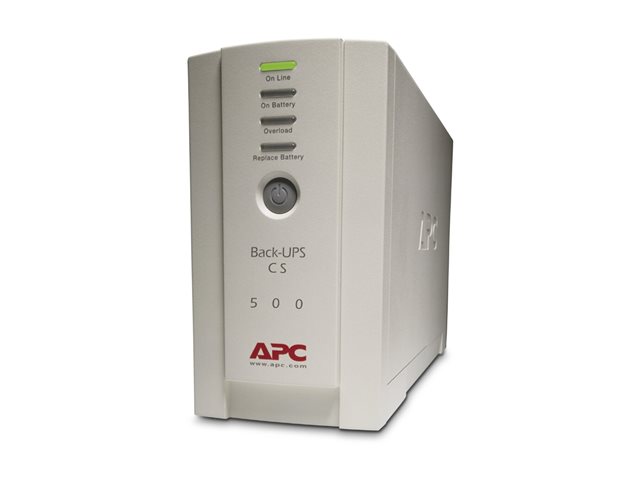

APC Back-UPS CS 500 - UPS - 300 Watt - 500 VA

Device Type

UPS - external

Weight

6 kg

Load Rating

Individual PC

Input Voltage

AC 230 V

Output Voltage

AC 230 V ± 8%

Power Capacity

300 Watt / 500 VA

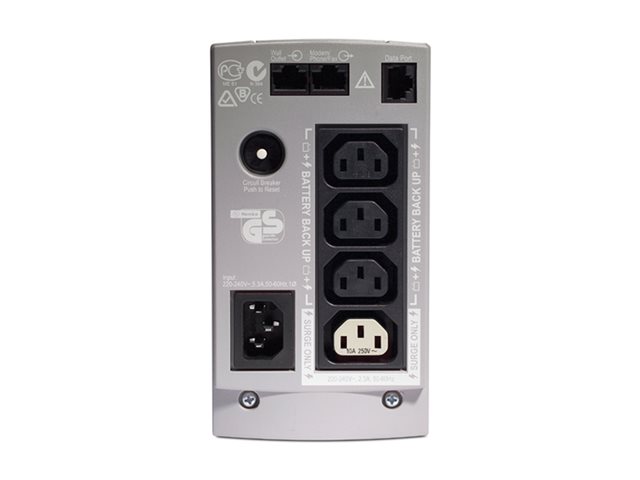

Input Connectors

1 x power IEC 60320 C14

Output connectors

1 x power IEC 60320 C13 (surge) ¦ 3 x power IEC 60320 C13 (UPS and surge)

Battery

Lead Acid

Battery Form Factor

Internal

Batteries Qty

Run Time (Up To)

2.4 min at full load

Networking

RS-232, USB

Colour

Beige

System Requirements

Apple MacOS 9, Apple MacOS 9.0.4 or later, Microsoft Windows 98/ME/2000/XP

Dimensions (WxDxH)

9.1 cm x 28.4 cm x 16.5 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

731304016359

General

Device Type

UPS - external

Battery Enclosure Type

Internal

Colour

Beige

Power Device

Load Rating

Individual PC

UPS Technology

Off-line

Input Voltage

AC 230 V

Input Voltage Range

AC 196 - 280 V

Input Voltage Range (Adjustable)

AC 160 - 300 V

Input Voltage Margin

± 5%

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

1 x power IEC 60320 C13 (surge) ¦ 3 x power IEC 60320 C13 (UPS and surge)

Output Voltage

AC 230 V ± 8%

Power Capacity

300 Watt / 500 VA

Dataline Surge Protection

Phone line - RJ-11

Output Waveform

Stepped approximation to a sinewave

Surge Suppression

Yes

Surge Energy Rating

300 Joules

Circuit Protection

Circuit breaker

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

2.4 min at full load

Recharge Time

8 hours

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (RS-232/USB) - RJ-45

Miscellaneous

Cables Included

USB cable - external

Equipment Protection Value

100000 Euros

Features

LED display, audible alarm

Compliant Standards

C-Tick, GOST, UL 1449, VDE, EN 50091-2, EN 50091-1

Software / System Requirements

Software Included

APC PowerChute Personal Edition

OS Required

Apple MacOS 9, Apple MacOS 9.0.4 or later, Microsoft Windows 98/ME/2000/XP

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Min Storage Temperature

-15 °C

Max Storage Temperature

45 °C

Humidity Range Operating

0 - 95%

Humidity Range Storage

0 - 95%

Sound Emission

40 dBA

Dimensions & Weight

Width

9.1 cm

Depth

28.4 cm

Height

16.5 cm

Weight

6 kg

Dimensions & Weight (Shipping)

Shipping Width

24.1 cm

Shipping Depth

36.8 cm

Shipping Height

17.8 cm

Shipping Weight

7.1 kg
