ASUS ROG CROSSHAIR X870E GLACIAL - motherboard - e

Images Manuals

Images for illustrative purposes

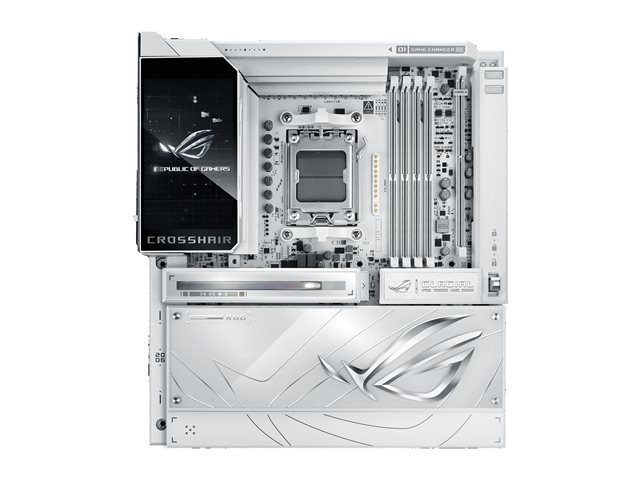

ASUS ROG CROSSHAIR X870E GLACIAL

Name: ASUS ROG CROSSHAIR X870E GLACIAL
Brand: ASUSTEK
SKU: WCE90MB1NQ0M0EAY0
Price: 1053.67 EUR
Availability: InStock

View all ASUSTEK AMD Desktop Motherboards - Visit the ASUSTEK Store (90MB1NQ0-M0EAY0) - (WCE90MB1NQ0M0EAY0)

Model: ASUS

ASUS ROG CROSSHAIR X870E GLACIAL - motherboard - extended ATX - Socket AM5 - AMD X870E

Robust performance capabilities
Impressive connectivity options
Enhanced audio experience
Advanced thermal management
Flexible expansion capabilities

FREE Delivery on orders over €250

7 Available to Ship
Order within 22Hrs 32Mins for: FREE Delivery (12 Jun or 15 Jun)

Was €1079.76 -2%

€1053.67 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ROG CROSSHAIR X870E GLACIAL motherboard from ASUS is designed to elevate the performance of high-end gaming systems. With support for Ryzen 7000 to 9000 Series processors and high-speed DDR5 RAM, it ensures optimal processing capabilities. The motherboard features a robust design with a spacious extended ATX form factor and multiple expansion slots, enabling customization and enhancements for diverse user requirements.

Equipped with advanced networking options including dual 10 Gigabit Ethernet and Wi-Fi 7, this motherboard offers reliable connectivity for seamless online experiences. The SupremeFX audio codec delivers high-definition sound quality to enhance gaming audio. With a comprehensive suite of features like AI Cooling II, AI Cache Boost, and robust thermal control, the ROG CROSSHAIR X870E GLACIAL ensures stability during demanding tasks while providing a platform for overclocking and performance tuning.

Features Summary

Robust performance capabilities
Supports high-speed DDR5 RAM with speeds up to 9600 MT/s (O.C.) and an AMD X870E chipset, ensuring that users can run resource-intensive applications seamlessly.
Impressive connectivity options
Includes 8 USB 3.2 Gen 2 ports, 4 USB-C 3.2 Gen 2 ports, and 2 USB4 interfaces, providing ample options for peripherals and external devices.
Enhanced audio experience
Features high-definition 8-channel audio with Dolby Atmos compliance through the SupremeFX codec, delivering superior sound for gaming and media.
Advanced thermal management
Incorporates a 3D VC M.2 heatsink along with customizable cooling solutions to prevent overheating during extended sessions.
Flexible expansion capabilities
Offers multiple expansion slots including PCIe 5.0 x16 and M.2 slots for SSDs, allowing for significant customization and upgrades as needed.

Specification Summary

Product Description

ASUS ROG CROSSHAIR X870E GLACIAL - motherboard - extended ATX - Socket AM5 - AMD X870E

Product Type

Motherboard - extended ATX

Chipset Type

AMD X870E

Processor Socket

1 x Socket AM5

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Max RAM Size

256 GB

RAM Supported

4 DIMM slots - DDR5, non-ECC, ECC, unbuffered

Storage Ports

4 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports

2 x USB4 + 4 x USB-C 3.2 Gen 2 + 8 x USB 3.2 Gen 2 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2 x 10 Gigabit Ethernet

Specifications

General

Product Type

Motherboard - extended ATX

Chipset Type

AMD X870E

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

8600 MT/s (O.C.), 9600 MT/s (O.C.), 8000 MT/s (O.C.)

Supported RAM Integrity Check

Non-ECC, ECC

Registered or Buffered

Unbuffered

Features

AMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology

Audio

Type

HD Audio (8-channel)

Audio Codec

SupremeFX (ALC4082)

Compliant Standards

High Definition Audio, Dolby Atmos

LAN

Network Controller

Mediatek MT7927

Network Interfaces

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2 x 10 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

AMD RAID Xpert2 Technology

Interfaces

2 x USB4 ¦ 8 x USB 3.2 Gen 2 ¦ 4 x USB-C 3.2 Gen 2 ¦ 2 x aerial ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out

Internal Interfaces

2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS Q-Fan, 3D VC M.2 heatsink, ASUS Q-Connector, AI Cooling II, AI Cache Boost, BIOS FlashBack button, Clear CMOS Button, 10K Black Metallic Capacitors, 2 BCLK buttons, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS Q-Design, FlexKey button, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, MicroFine Alloy Chokes, PCIe Slot Q-Release, ProbeIt, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, ReTry button, Safe boot button, Start button, Q-DIMM.2, M.2 heatsink, M.2 heatsink backplate, metal backplate, VRM heatsink design, 5" LCD full-colour display, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket lever protector, pre-mounted I/O shield

Miscellaneous

Included Accessories

1 to 2 ARGB LED splitter cable, 1 to 4 ARGB LED splitter cable, ROG Hyper M.2 card with heatsink, 2 x thermal pad for ROG Hyper M.2 card, M.2 pad package for ROG Hyper M.2 card, ROG Q-DIMM.2 with heatsink, M.2 pad package for ROG Q-DIMM.2, 2 x thermal pad for ROG Q-DIMM.2, thermal pad for M.2 SSD, ROG memory Q-Fan, ASUS Wi-Fi Q-antenna, Q-Connector, 7 x M.2 backplate rubber package, M.2 Q-Slide, ROG logo plate sticker, ROG stickers, ROG VIP card, ROG bottle opener, 2 x 1 to 3 fan splitter cable, ROG DIMM.2 with heatsink

Cables Included

2 x Serial ATA cable

Software Included

Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, BullGuard Internet Security (1 year licence), HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

Width

30.5 cm

Depth

27.7 cm
