ELO TOUCHSYSTEMS

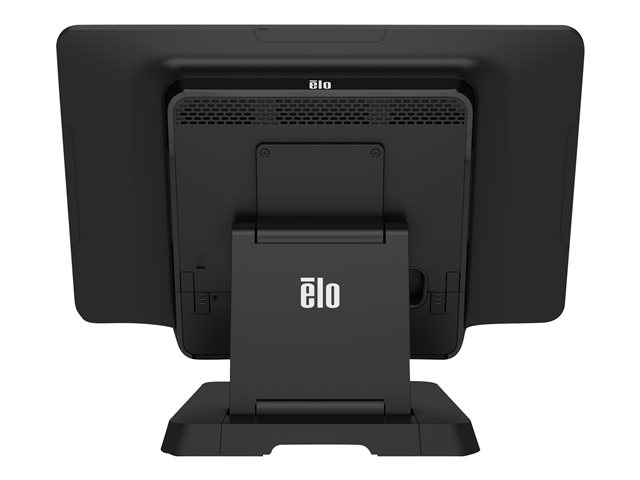

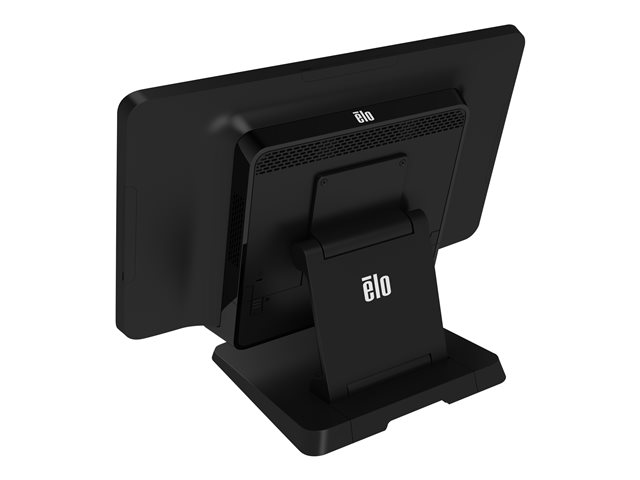

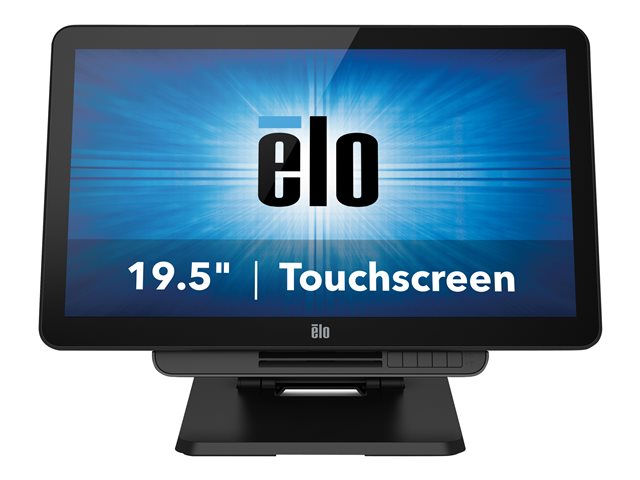

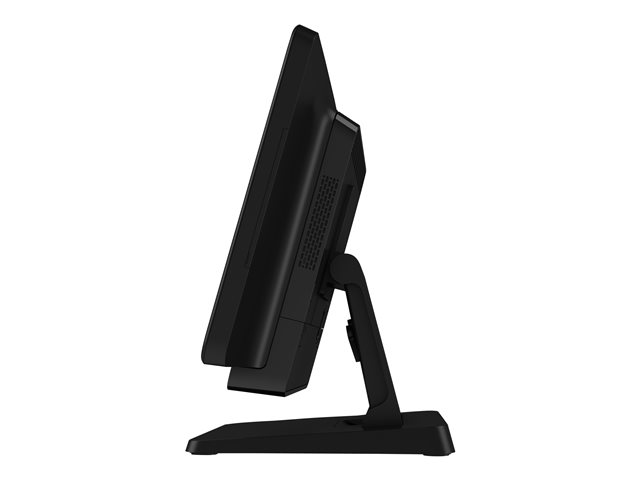

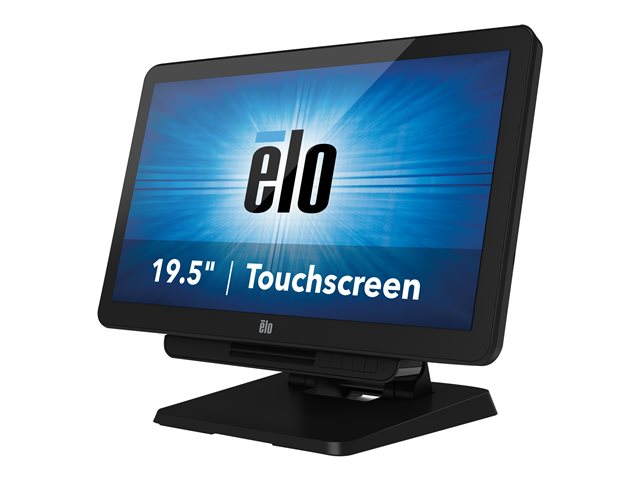

Elo Touchcomputer X5-20 ...

ESY20X5 2UWA 1 MT ZB 4G 1S W1 64 BK (E507131)

Manufacturer Logo

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED. **Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

20  Available to Ship
Quantity
Increase Quantity Decrease Quantity
€2528.12    Save €280.91
€2247.21   Incl Vat



Order in the next 2Hrs 8Mins for:
Delivery (17 Nov or 20 Nov)
Collection (16 Nov or 17 Nov)

Wishlist Add to Wishlist
Elara SKU: MME0V00593    |   Manufacturer SKU: E507131
Add Review     Add to Compare Add to compare     Print Page Print Page     Return to Results
Elo Touchcomputer X5-20 Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Elo X-Series 19.5-inch all-in-one (AiO) touchscreen computer brings style, flexibility and functionality to point-of-sale (POS) and point-of-information (POI) and point-of-service applications within retail and hospitality environments. Configuration customization, serviceability and performance combine to deliver a solution that adapts to your existing hardware, software and connectivity requirements.





Elo Touchcomputer X5-20 Features
Product Description
Elo Touchcomputer X5-20 - Core i5 4590T 2 GHz - 4 GB - 128 GB - LED 20"
Type
Kiosk - all-in-one
Localisation
Worldwide
Processor
1 x Intel Core i5 (4th Gen) 4590T / 2 GHz (3 GHz) (Quad-Core)
Processor Main Features
Intel Smart Cache
Cache Memory
6 MB
Cache Per Processor
6 MB
RAM
4 GB (installed) / 16 GB (max) - DDR3L SDRAM - PC3-12800
Storage Controller
SATA
Hard Drive
1 x SSD 128 GB - SATA 3Gb/s - 2.5"
Monitor
20" - LED - 1920 x 1080 (Full HD) - 16:9 - touchscreen
Graphics Controller
Intel HD Graphics 4600
Audio Output
Stereo
Networking
GigE, 802.11b, 802.11g, 802.11n, Bluetooth 4.0
OS Provided
Windows 10
Dimensions (WxDxH)
49.212 cm x 25.17 cm x 35.69 cm
Weight
7.53 kg
Environmental Standards
ENERGY STAR Qualified
Manufacturer Warranty
3 years warranty
Elo Touchcomputer X5-20 Specifications
General
Type
Kiosk
Product Form Factor
All-in-one
Built-in Devices
Stereo speakers
Embedded Security
Trusted Platform Module (TPM 1.2) Security Chip
Colour
Black
Localisation
Worldwide
Processor / Chipset
CPU
Intel Core i5 (4th Gen) 4590T / 2 GHz
Max Turbo Speed
3 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Chipset Type
Intel Q87 Express
Cache Memory
Installed Size
6 MB
Cache Per Processor
6 MB
RAM
Installed Size
4 GB / 16 GB (max)
Technology
DDR3L SDRAM
Effective Memory Speed
1600 MHz
Rated Memory Speed
1600 MHz
Memory Specification Compliance
PC3-12800
RAM Supported
PC3-12800 - 16 GB
Hard Drive
Type
SSD - 2.5"
Capacity
1 x 128 GB
Interface Type
SATA 3Gb/s
Storage Controller
Type
SATA
RAID Level
RAID 0, RAID 1
Monitor
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
20"
Native Resolution
1920 x 1080 (Full HD)
Image Aspect Ratio
16:9
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
Response Time
20 ms
Image Brightness
215 cd/m²
Image Contrast Ratio
3000:1
Monitor Features
Projected Capacitive Touch (P-CAP) technology, IntelliTouch Pro
Graphics Controller
Graphics Processor
Intel HD Graphics 4600
Audio Output
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0
Expansion / Connectivity
Bays
1 (total) / 0 (free) x internal 2.5"
Slots
2 (total) / 1 (free) x memory
Interfaces
4 x USB 3.0 (4 rear) ¦ 1 x microphone - mini-jack ¦ 1 x headphones - mini-jack ¦ 1 x serial - RJ-45 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA output ¦ 1 x serial ¦ 3 x USB - micro-USB ¦ 2 x USB 2.0 ¦ 1 x PoweredUSB (24 V)
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Mounting Interface
100 x 100 mm
Compliant Standards
UL, TUV, cUL, CB, IC, FCC
Power
Device Type
Power adapter
Power Consumption Operational
75 Watt
Operating System / Software
OS Provided
Windows 10
Environmental Standards
ENERGY STAR Certified
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
49.212 cm
Depth
25.17 cm
Height
35.69 cm
Weight
7.53 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
