ELO TOUCHSYSTEMS

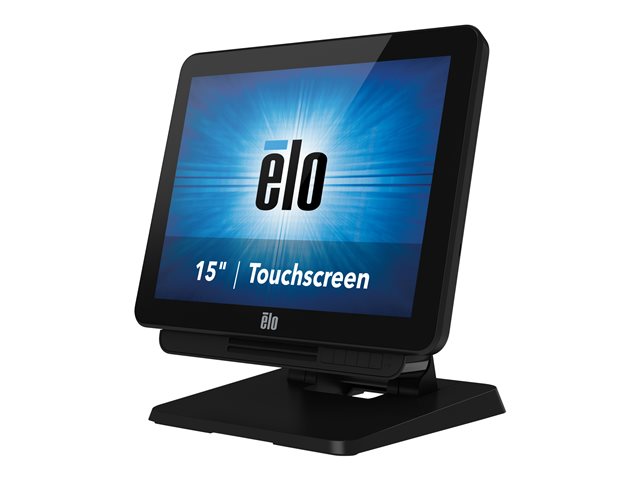

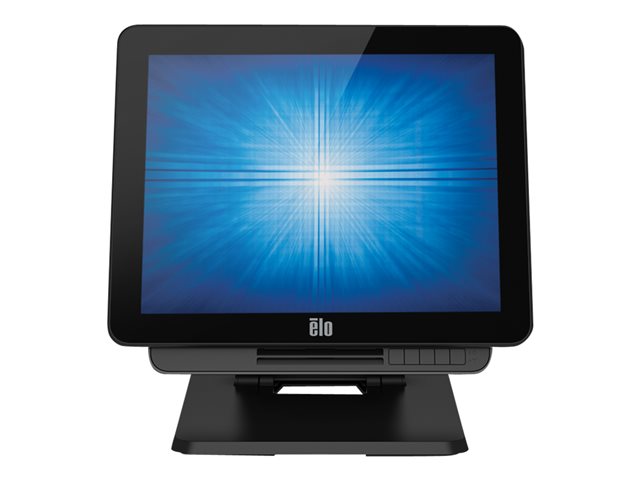

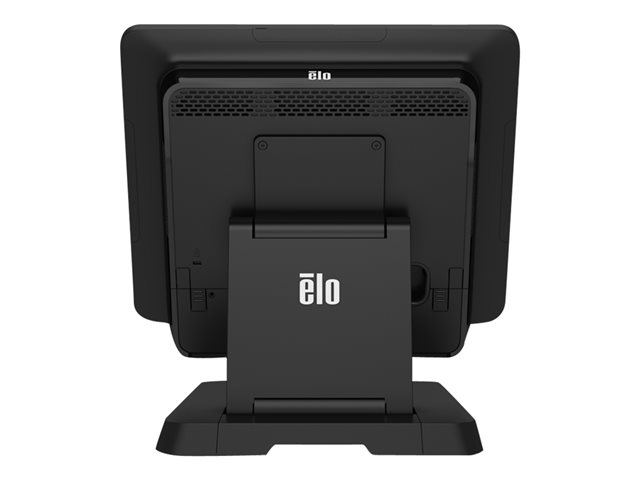

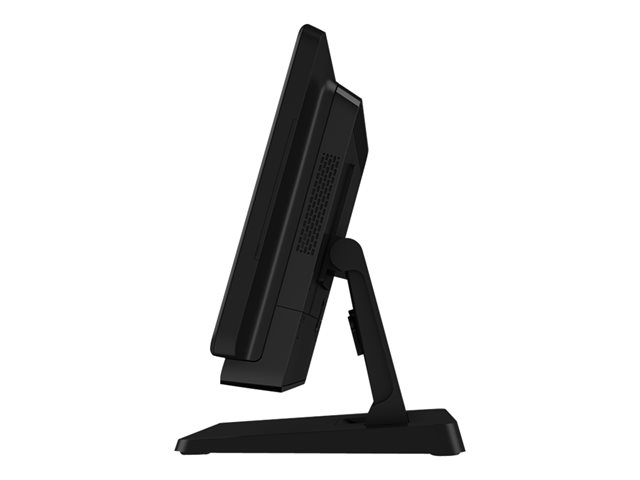

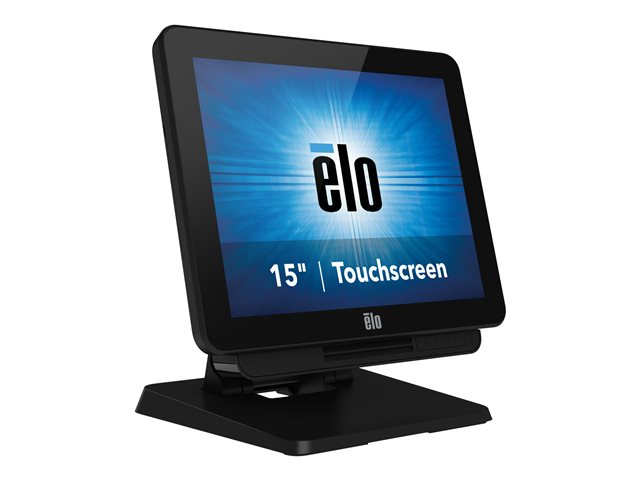

Elo Touchcomputer X3-15 ...

ESY15X3 4GB RAM 128SSD NO OS BL 10T PCAP ZERO-BEZEL ANTIGLARE (E918496)

Manufacturer Logo

**Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

 13  Available to Ship
Quantity
Increase Quantity Decrease Quantity
€1621.76    Save €180.20
€1441.56   Incl Vat



Elo Touchcomputer X3-15 Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Elo X-Series All-in-One (AiO) touchcomputers bring style, flexibility and functionality to point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. Configuration customization, serviceability and performance combine to deliver touchcomputing that adapts to your existing hardware, software and connectivity requirements. These touchcomputers are available with industry-leading touchscreen technologies from Elo including AccuTouch micro-bezel 5-wire resistive, IntelliTouch surface acoustic wave, IntelliTouch zero-bezel surface acoustic wave (SAW) and IntelliTouch Pro Projected Capacitive (PCAP). A wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options make the X-Series a versatile and powerful AiO solution. The X-Series configuration choices meet the diverse needs of a wide variety of POS, POI and point-of-service venues, including retail and hospitality display units, customer loyalty systems and in-store kiosks, just to name a few.





Elo Touchcomputer X3-15 Features
Product Description
Elo Touchcomputer X3-15 - Core i3 4350T 3.1 GHz - 4 GB - 128 GB - LED 15"
Type
Kiosk - all-in-one
Localisation
Worldwide
Processor
1 x Intel Core i3 (4th Gen) 4350T / 3.1 GHz (Dual-Core)
Processor Main Features
Intel Smart Cache
Cache Memory
4 MB
Cache Per Processor
4 MB
RAM
4 GB (installed) / 16 GB (max) - DDR3L SDRAM - PC3-12800
Storage Controller
SATA
Hard Drive
1 x SSD 128 GB - SATA 3Gb/s
Monitor
15" - LED - 1024 x 768 (XGA) - 4:3 - touchscreen
Graphics Controller
Intel HD Graphics 4600
Audio Output
Stereo
Networking
GigE, 802.11b, 802.11g, 802.11n, Bluetooth 4.0
OS Provided
No operating system
Dimensions (WxDxH)
36.52 cm x 6.72 cm x 34.88 cm
Weight
7.5 kg
Environmental Standards
ENERGY STAR Qualified
Manufacturer Warranty
3 years warranty
Elo Touchcomputer X3-15 Specifications
General
Type
Kiosk
Product Form Factor
All-in-one
Colour
Black
Localisation
Worldwide
Processor / Chipset
CPU
Intel Core i3 (4th Gen) 4350T / 3.1 GHz
Number of Cores
Dual-Core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Cache Memory
Installed Size
4 MB
Cache Per Processor
4 MB
RAM
Installed Size
4 GB / 16 GB (max)
Technology
DDR3L SDRAM
Effective Memory Speed
1600 MHz
Rated Memory Speed
1600 MHz
Memory Specification Compliance
PC3-12800
RAM Supported
PC3-12800 - 16 GB
Hard Drive
Type
SSD
Capacity
1 x 128 GB
Interface Type
SATA 3Gb/s
Storage Controller
Type
SATA
Monitor
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
15"
Native Resolution
1024 x 768 (XGA)
Image Aspect Ratio
4:3
Horizontal Viewing Angle
+85 / -80
Vertical Viewing Angle
+70 / -80
Response Time
16 ms
Image Brightness
215 cd/m²
Image Contrast Ratio
700:1
Monitor Features
Projected Capacitive Touch (P-CAP) technology, IntelliTouch Pro
Graphics Controller
Graphics Processor
Intel HD Graphics 4600
Audio Output
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0
Expansion / Connectivity
Bays
1 (total) / 0 (free) x internal 2.5"
Slots
2 (total) / 1 (free) x memory
Interfaces
2 x USB 3.0 (2 rear) ¦ 1 x microphone - mini-jack ¦ 1 x headphones - mini-jack ¦ 1 x serial - RJ-45 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA output ¦ 1 x serial ¦ 3 x USB - micro-USB ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x PoweredUSB (24 V)
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Mounting Interface
100 x 100 mm
Compliant Standards
UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, CoC
Power
Device Type
Power adapter
Power Consumption Operational
59 Watt
Operating System / Software
OS Provided
No operating system
Environmental Standards
ENERGY STAR Certified
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
36.52 cm
Depth
6.72 cm
Height
34.88 cm
Weight
7.5 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
