HPE LTO-5 Ultrium 3280 - tape drive - LTO Ultrium

Images Manuals

Images for illustrative purposes

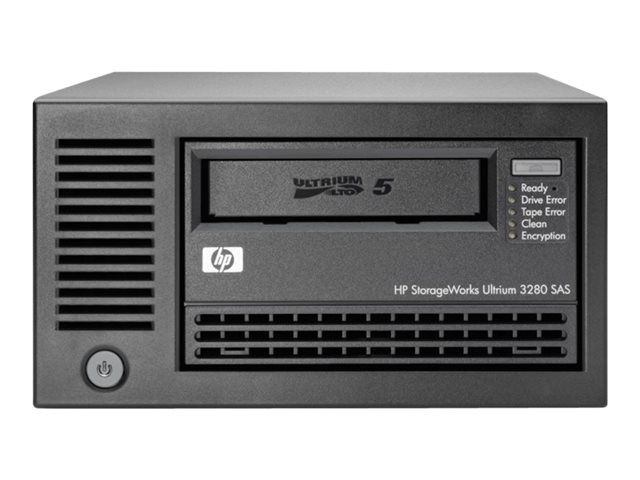

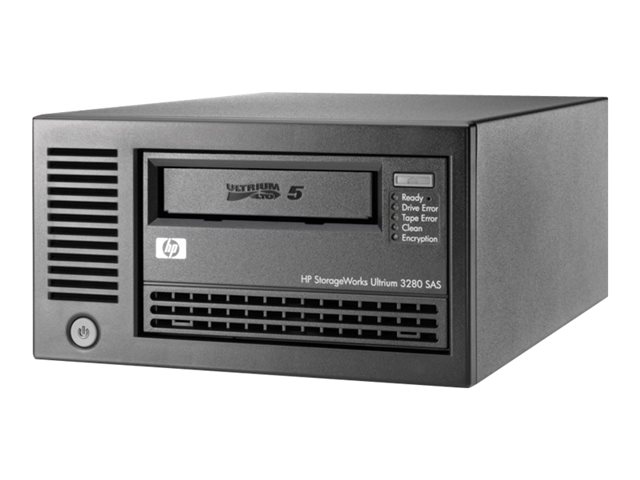

HPE LTO-5 Ultrium 3280

View all HPE Tape Drives - Visit the HPE Store (EH900B) - (ECE2557464)

LTO-5 Ultrium 3280 SAS External Tape Drive

Outstanding Capacity and Performance, Monitoring Capabilities, Hardware Encryption & StoreOpen/LTFS
Reliable, Well Connected and Compatible
Complete Solution Straight out of the Box

FREE Delivery on orders over €250

0 Available to Ship
Restock 08-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€4285.47 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

HPE StoreEver LTO Ultrium Tape Drives represent eight-generations of LTO technology capable of storing up to 30TB per cartridge, with hardware data encryption, HPE StoreOpen with LTFS for ease of use at an unprecedented performance. Data hardware encryption using AES 256-bit provides easy-to-enable security to protect the most sensitive data and prevent unauthorized access of tape cartridges. Linear Tape File System (LTFS) is an open format for storing data on tape that makes LTO generation 5 and later tapes self-describing and file-based. Capable of data transfer rates up to 300 MB/s native, the Data Rate Matching further optimizes performance by matching host system speed to keep drives streaming, thus enabling the fastest tape performance.

Features Summary

Outstanding Capacity and Performance, Monitoring Capabilities, Hardware Encryption & StoreOpen/LTFS
HPE StoreEver LTO Ultrium Tape Drives provide up to 30TB of compressed capacity on a single cartridge.
HPE StoreOpen Standalone and Linear Tape File System (LTFS) allows customers to store data in an open format making the tape self-describing and file-based.
Enables even the tightest backup window to be met with unprecedented performance.
Provides highest level of security with encryption for strong backup data privacy to secure confidential information and address compliance quickly and with fewer cartridges.
Reliable, Well Connected and Compatible
Allows the tape drive to continuously adjust the speed of the drive to keep drives streaming to maximize performance and reduce start/stops which significantly increase reliability of HPE drives and media.
SAS models qualified on HPE and non-HPE servers; including popular platforms from vendors such as Dell, IBM, and Sun. See DAPR compatibility matrix on the right rail for more information.
Extensive list of supported backup and archiving software applications from HPE, CA, VERITAS, Legato, Tivoli, and many more.
Design leveraged from previous HPE LTO tape drives to deliver confident backups at high duty cycles.
Complete Solution Straight out of the Box
Provides HPE LTO media, cables, user guides and a download flyer for the fully functional 60-day trial of Veritas Backup Exec. Customers can receive a 50% discount off Veritas MSRP.
For IT organizations with stringent, long-term data retention requirements, WORM data protection capability offers a simple and secure method for archiving records allowing customers to affordably meet the toughest industry compliance regulations.

Specification Summary

Product Description

HPE LTO-5 Ultrium 3280 - tape drive - LTO Ultrium - SAS-2

Device Type

Tape drive

Recording Standard

LTO Ultrium 5

Enclosure Type

External

Interface Type

SAS-2

Key Features

Encryption

Dimensions (WxDxH)

21.8 cm x 29.7 cm x 12 cm

Weight

5.57 kg

Storage Removable

LTO Ultrium

Storage Removable Capacity

1.5 TB (native) / 3 TB (compressed)

Supported Tape Cartridges (Read and Write)

Ultrium 4, Ultrium 5

Data Transfer Rate (native)

140 MBps (504 GBph)

Data Transfer Rate (compressed)

280 MBps (1008 GBph)

OS Required

IBM AIX, SunSoft Solaris, HP-UX, Red Hat Linux, SuSe Linux, Microsoft Windows, HP Tru64 UNIX

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4948382931863

General

Device Type

Tape drive - LTO Ultrium

Recording Standard

LTO Ultrium 5

Enclosure Type

External

Interface Type

SAS-2

Key Features

Encryption

Width

21.8 cm

Depth

29.7 cm

Height

12 cm

Weight

5.57 kg

Storage Removable

Type

LTO Ultrium

Capacity

1.5 TB (native) / 3 TB (compressed)

Supported Tape Cartridges (Read and Write)

Ultrium 4, Ultrium 5

Recording Standard

Ultrium 4, Ultrium 5

Data Transfer Rate (native)

140 MBps (504 GBph)

Data Transfer Rate (compressed)

280 MBps (1008 GBph)

Buffer Size

256 MB

Expansion / Connectivity

Interfaces

1 x SAS-2 - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)

Miscellaneous

Media Included Qty

Included Accessories

Cleaning cartridge

Cables Included

1 x SAS cable

MTBF

250,000 hour(s)

Compliant Standards

TUV, VCCI, C-Tick, BSMI, EN 60950, NOM, RRL, IEC 60950, CSA 22.2 No. 60950, CB, FCC CFR47 Part 15, AES-256

Software / System Requirements

Software Included

Drivers & Utilities, Yosemite Backup Basic, HP Library and Tape Tools

OS Required

IBM AIX, SunSoft Solaris, HP-UX, Red Hat Linux, SuSe Linux, Microsoft Windows, HP Tru64 UNIX

Manufacturer Warranty

Type

Limited warranty - 3 years - response time: next day ¦ Technical support - phone consulting - 3 years

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 80% (non-condensing)
